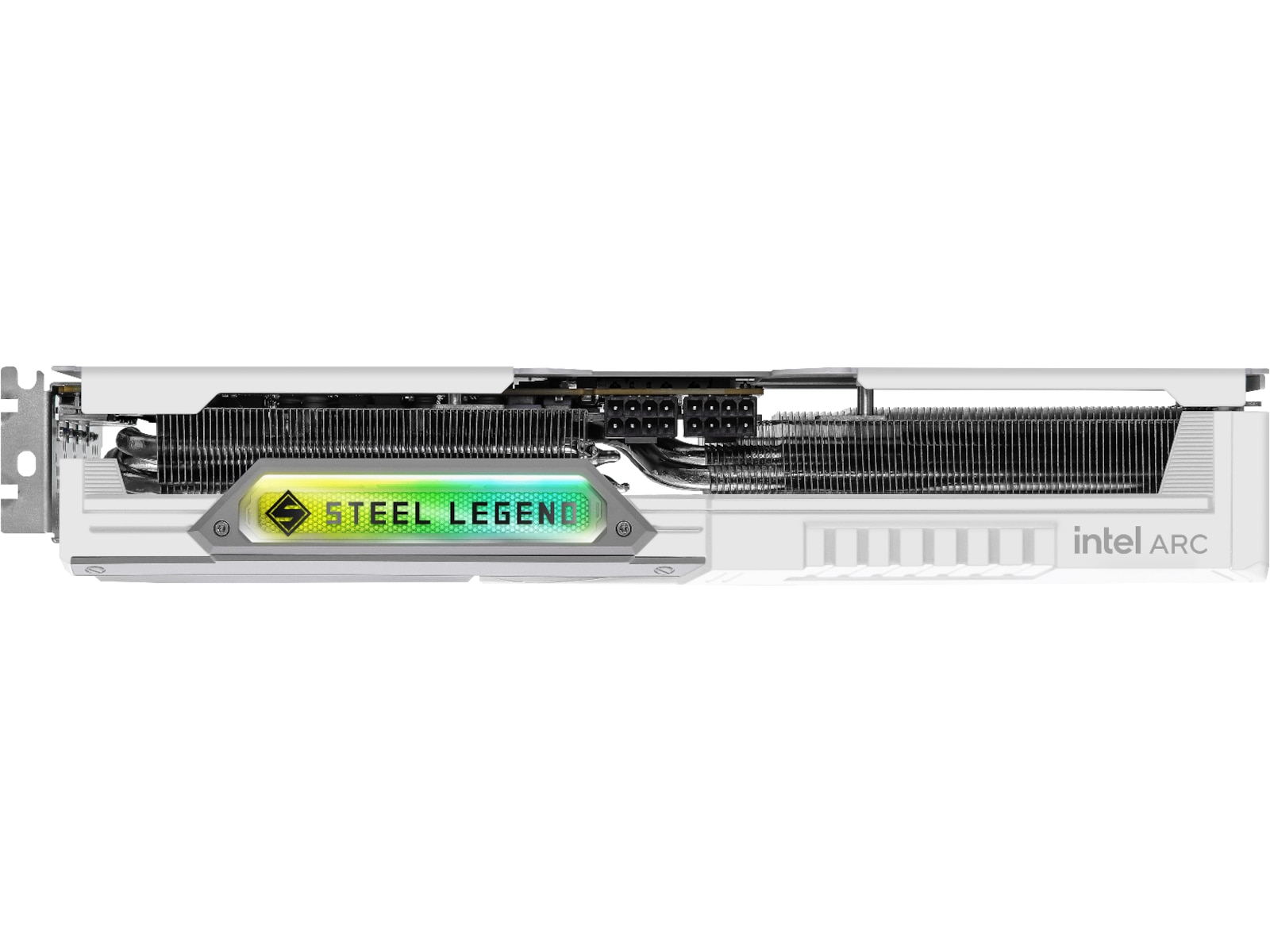

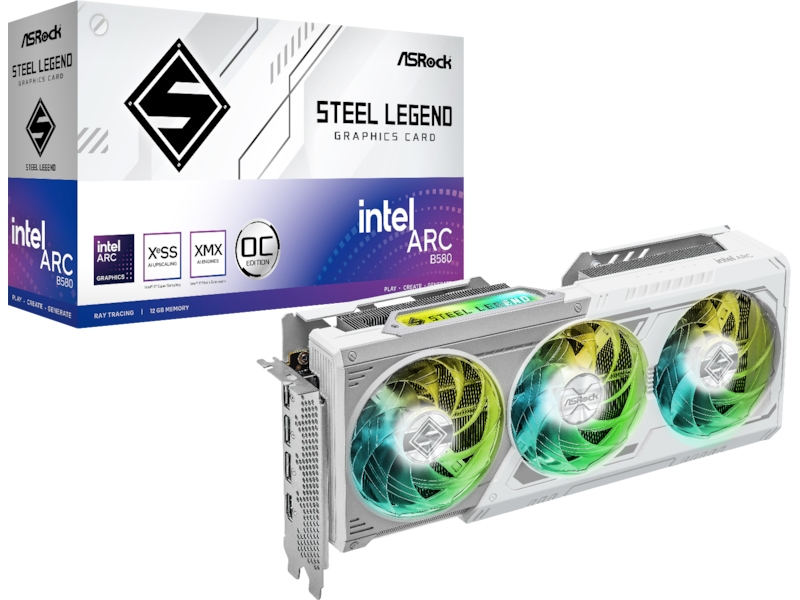

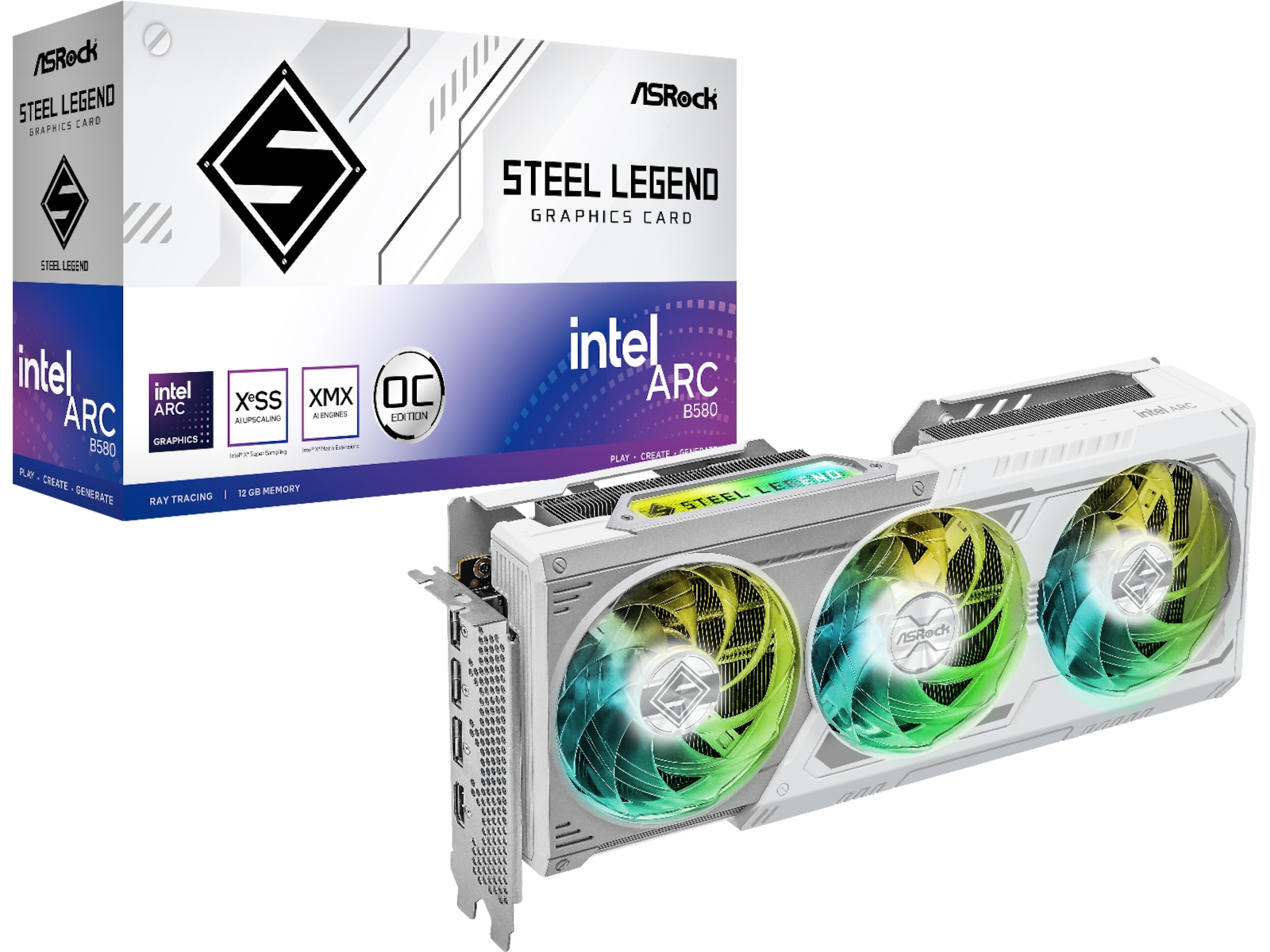

ASRock Intel Arc B580 Steel Legend OC

Polychrome SYNC

Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED Switch

Switch on/off as you want.

You can switch LED on or off depends on the scenarios or your need.

ARGB Header

More ARGB, More Fancy.

With the ARGB header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

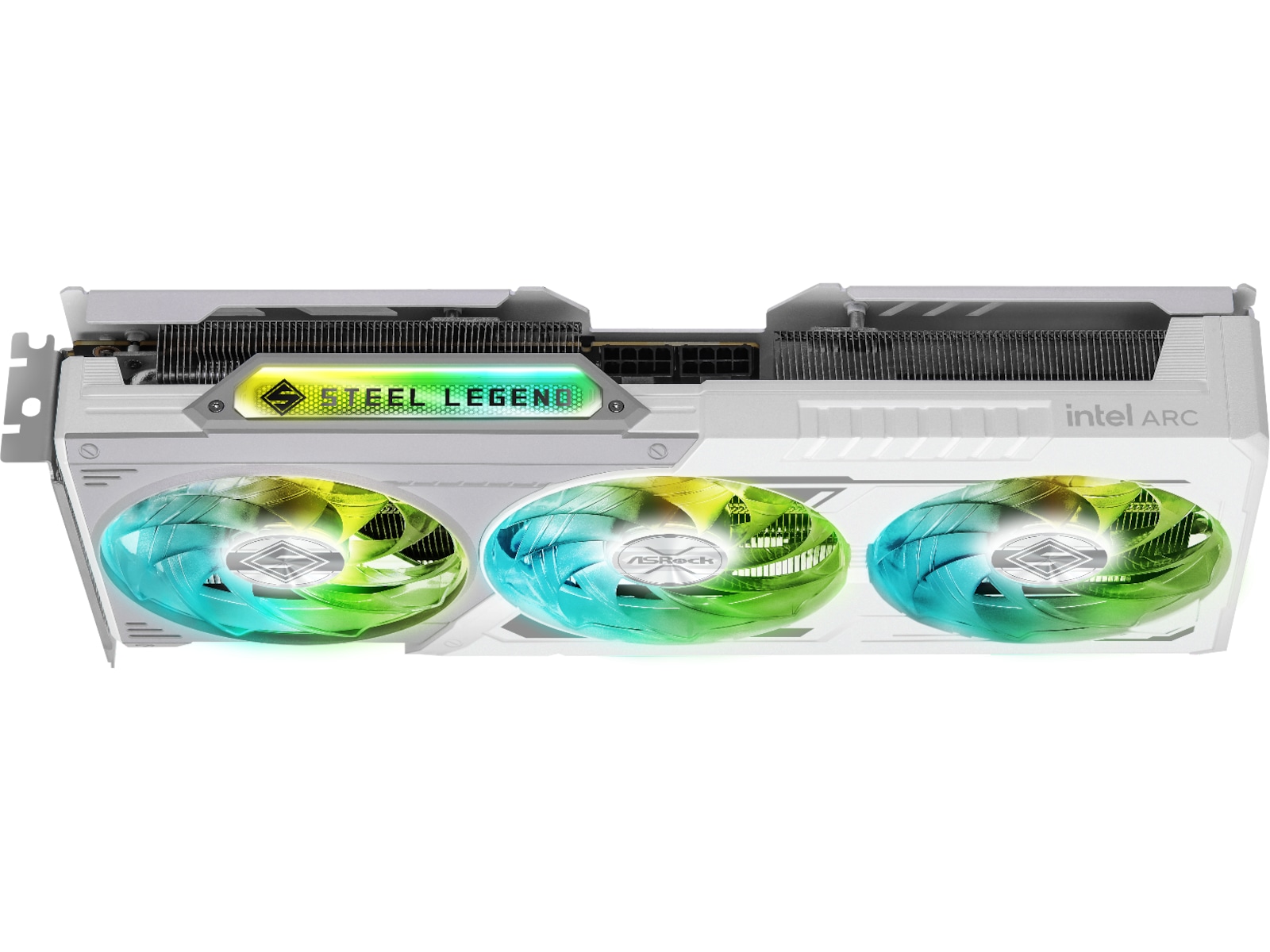

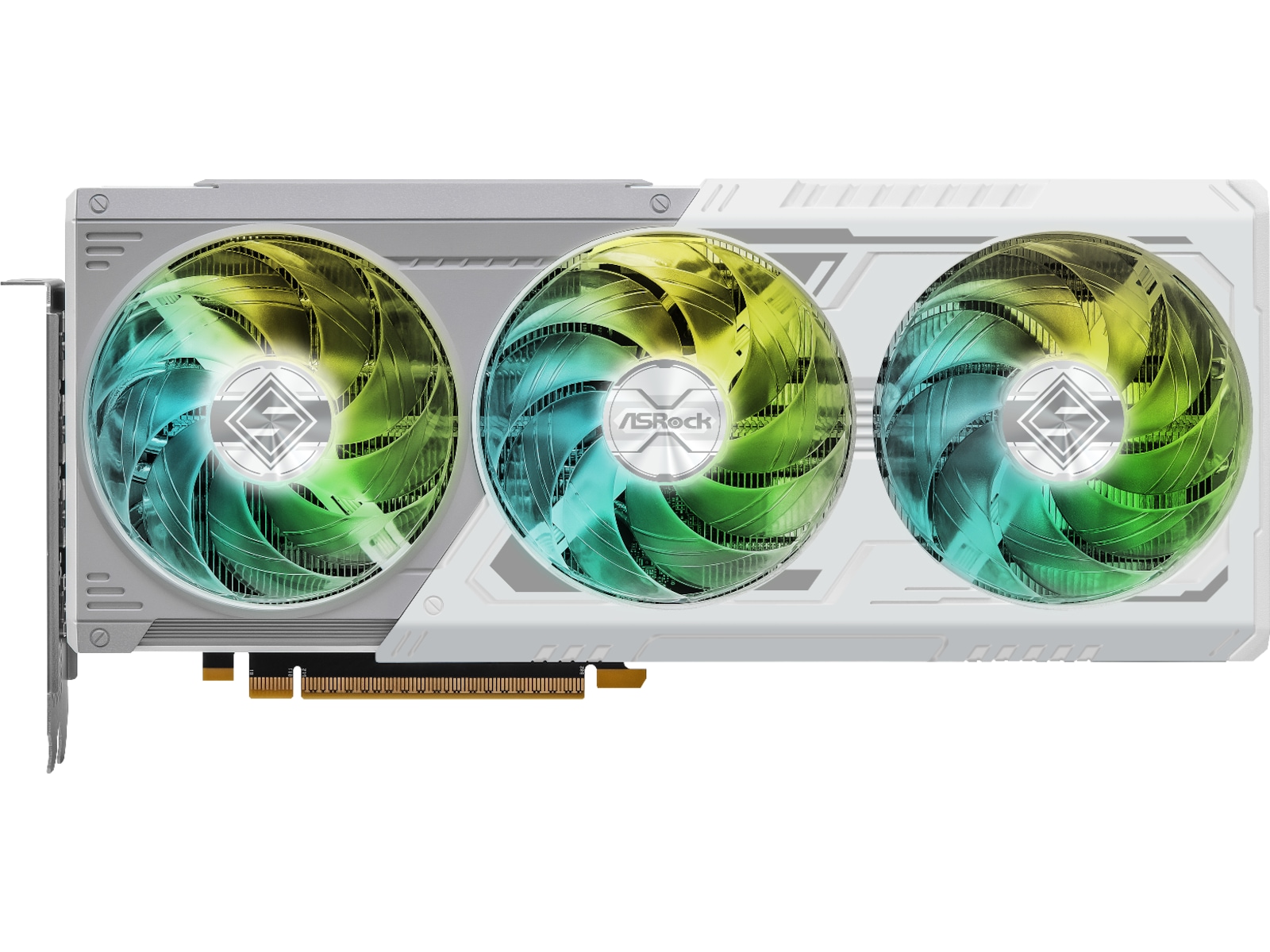

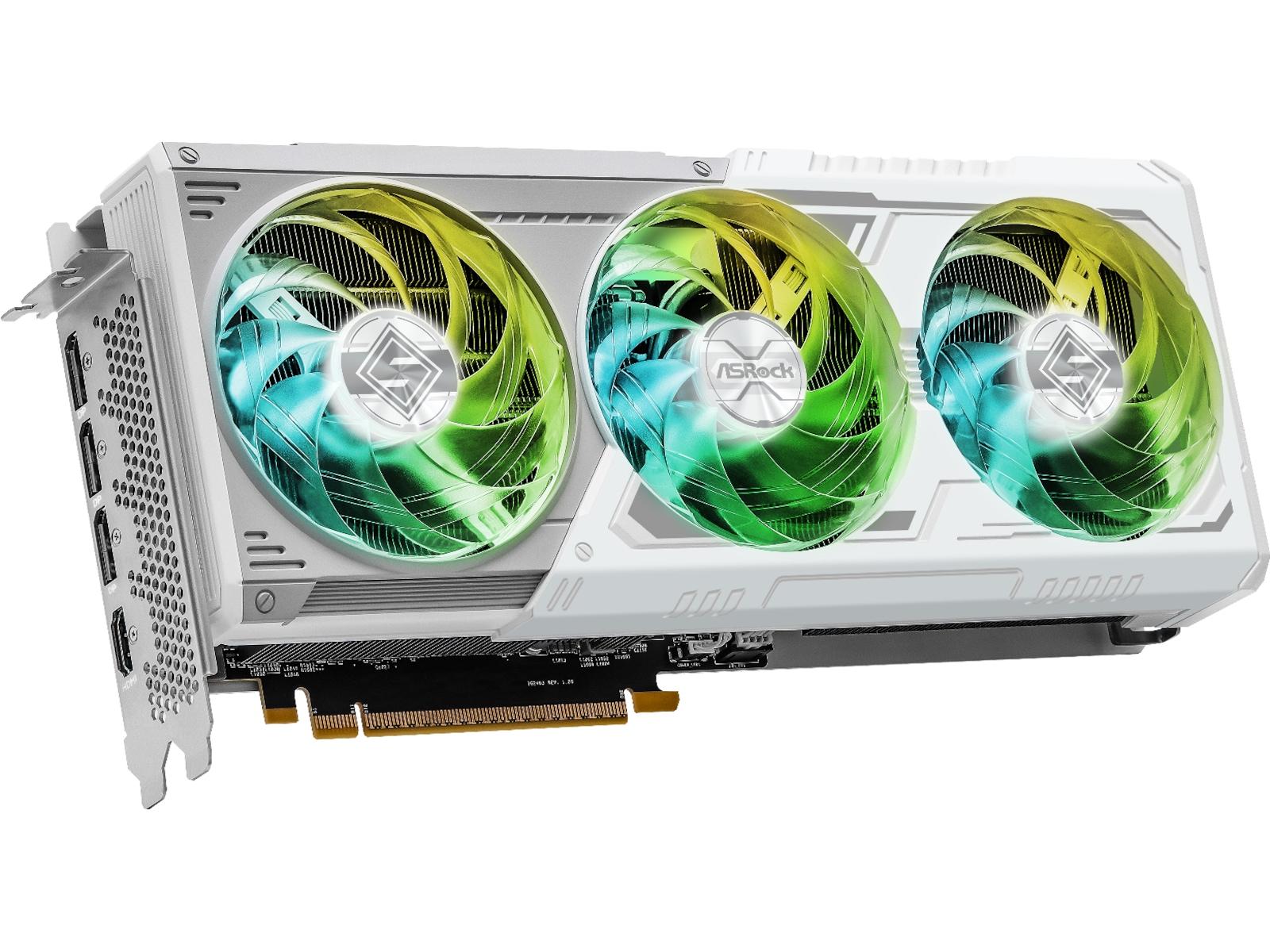

Triple Fan Design

Triple fan design helps to optimize system cooling to reduce the operating temperature.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

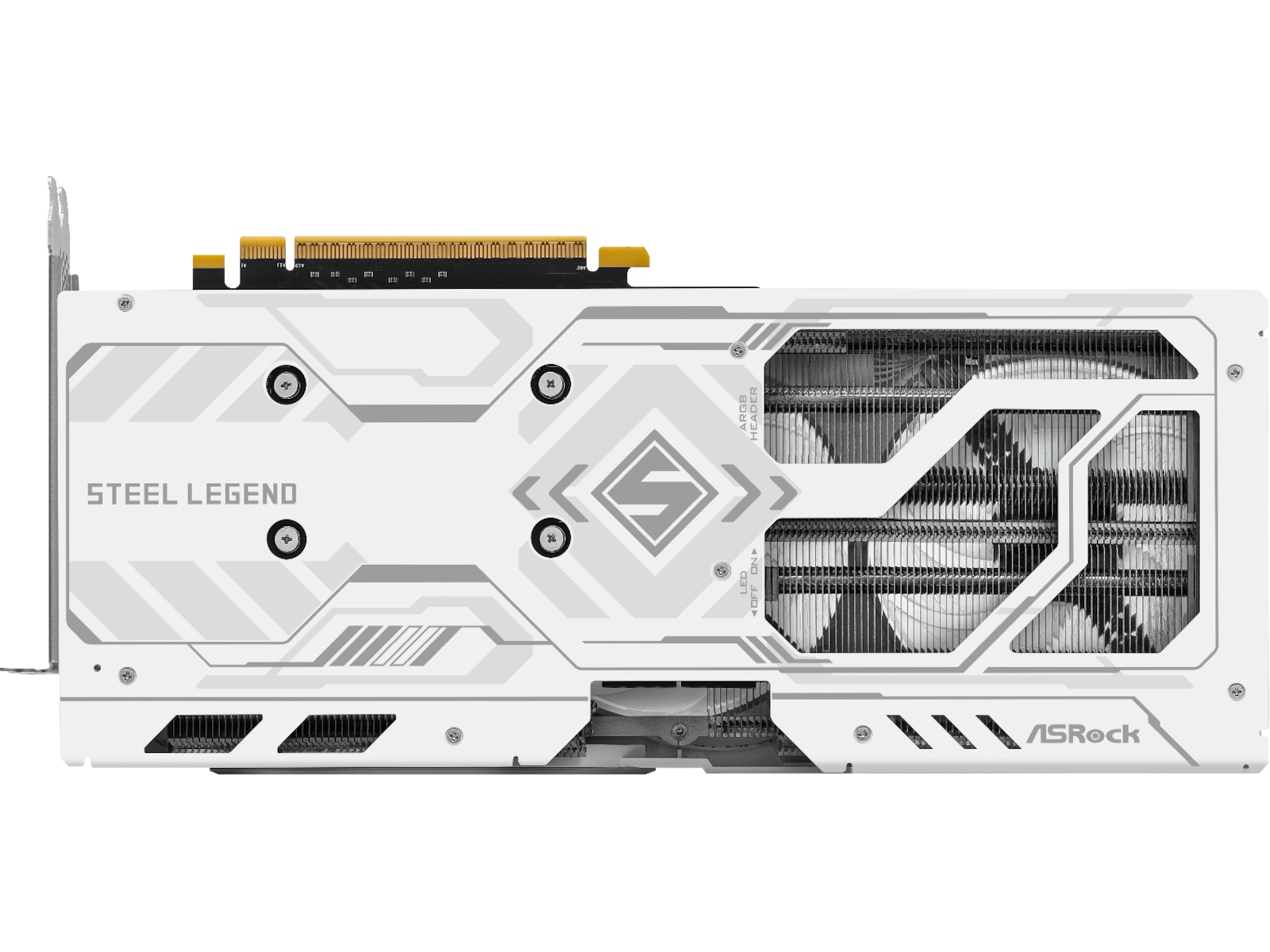

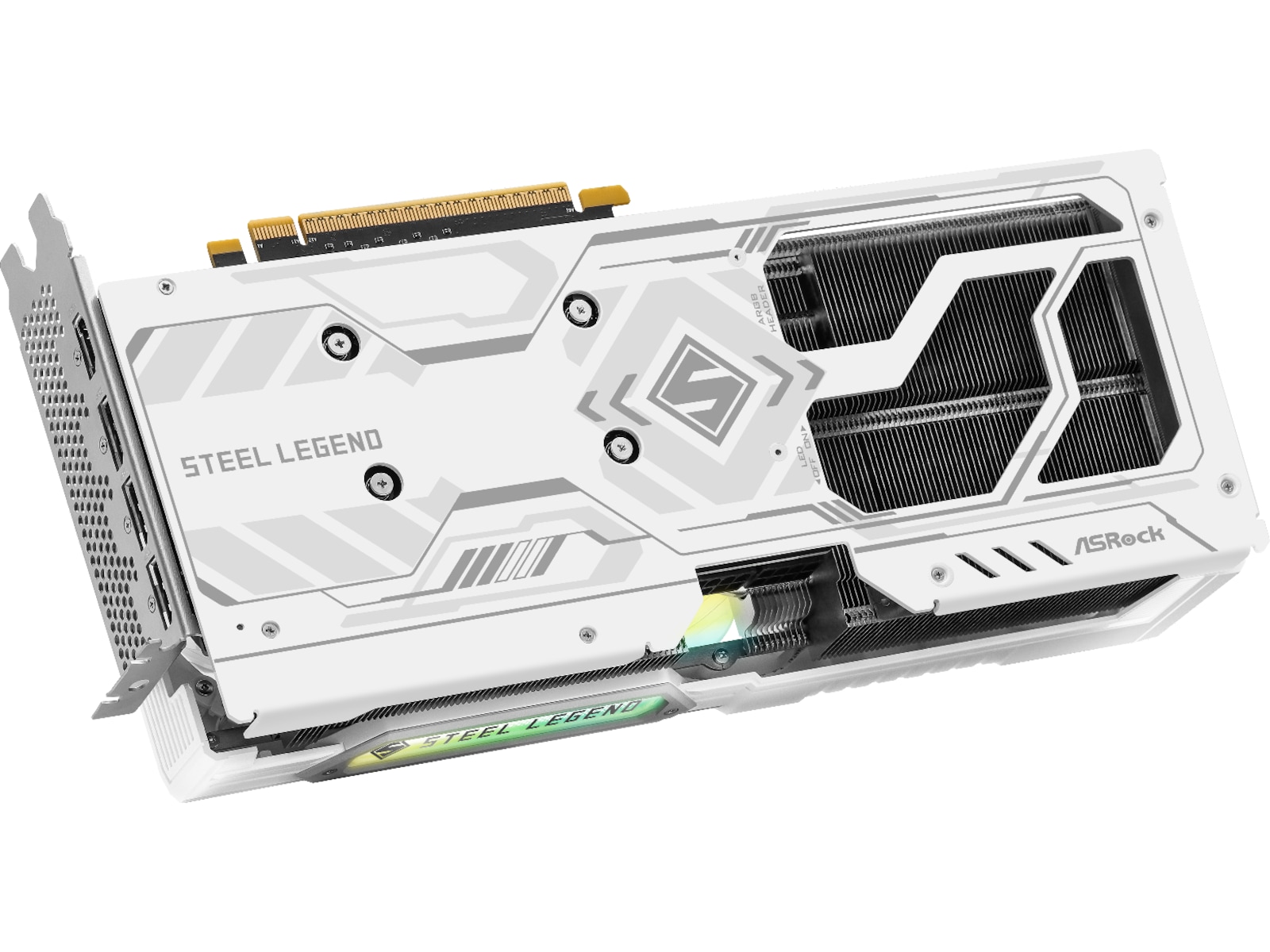

Stylish Metal Backplate

Solid, Refined, Cool.

Designed to avoid PCB bending. The white-themed outlook makes the graphic card more simple and purified in visual.

Air Deflecting Fin

Guide Airflow to Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Nickel-plated Copper Base

Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
Allmänt
Modell Intel Arc B580 12GB OC
Produktlinje ASRock Steel Legend
Producentens garanti (månader) 36
EAN 4711581490024
Videoutgång
Maximalt antal skärmar 4
Typ av gränssnitt PCI Express 4.0 x8
Klockhastighet 2800 MHz
Grafikprocessortillverkare Intel
HDCP-kompatibel Ja
Typ Grafikkort
Grafikprocessor Intel Arc B580
Maximal extern upplösning 7680 x 4320
API-stöd OpenGL 4.6, DirectX 12 Ultimate

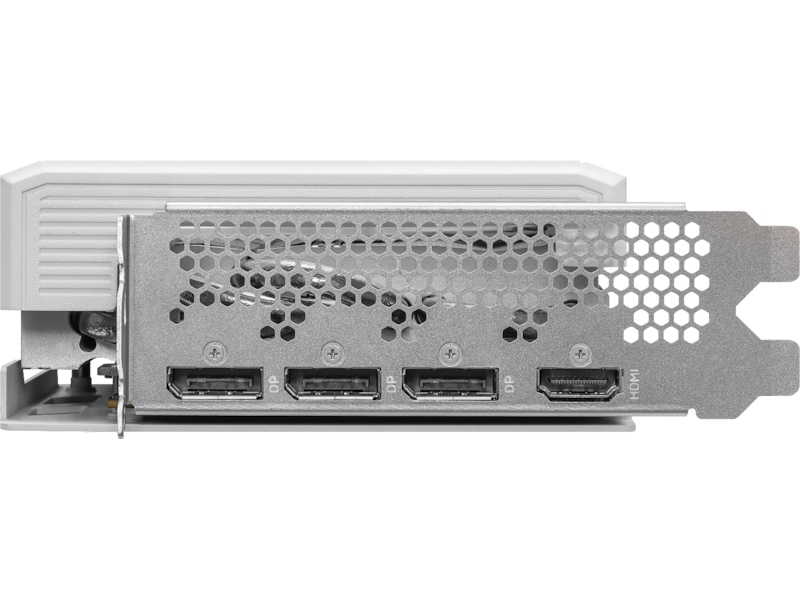

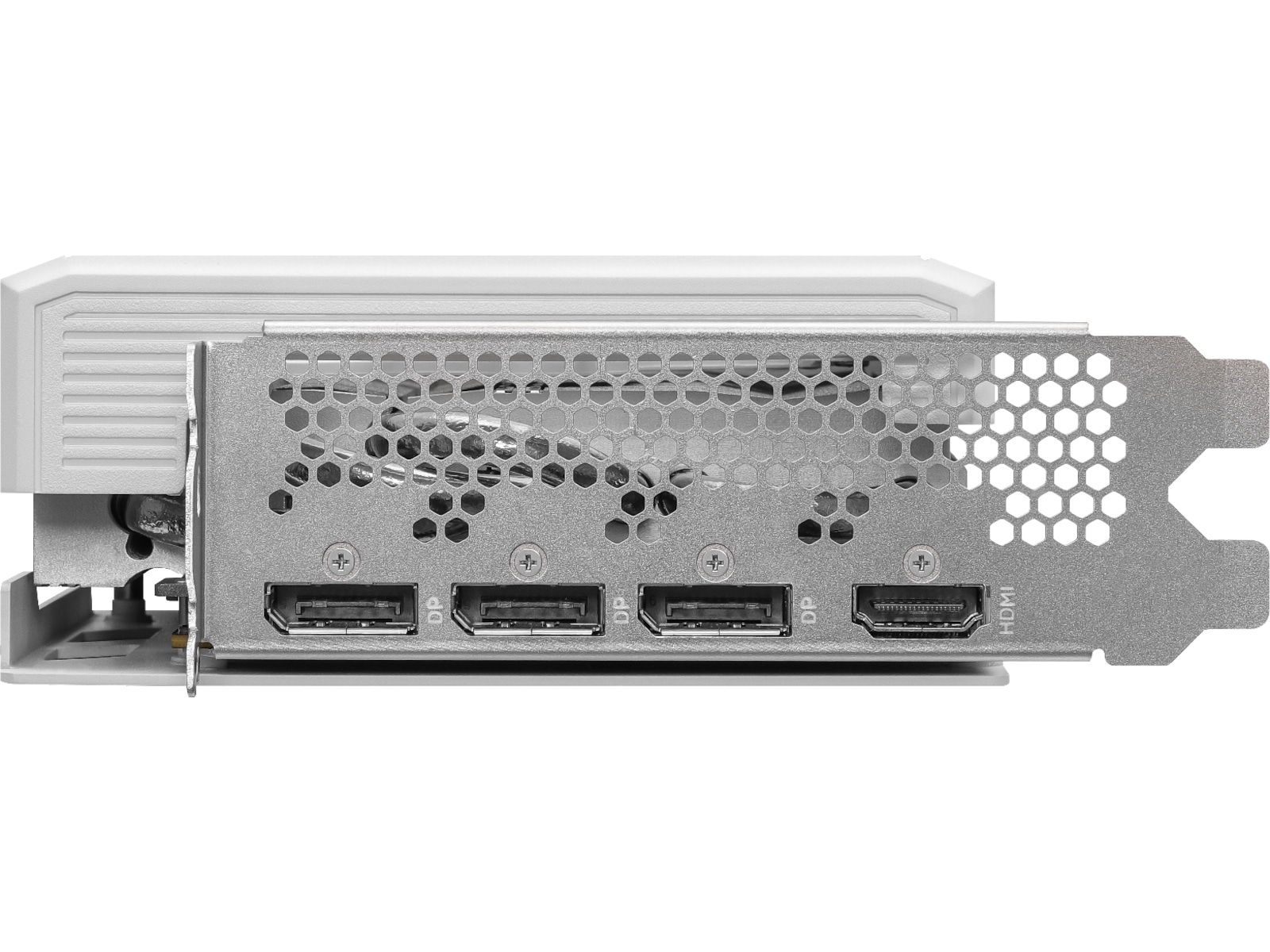

Utgångsportar (kompaktlista) HDMI, 3 x DisplayPort
Videosignal som stöds DisplayPort, HDMI
Egenskaper för videoadapter Bakre metalplåt, Intel Xe Super Sampling 2 (XeSS 2), Nickelpläterad kopparbas, Glastextil-PCB med hög densitet, Premium Power Choke, LED på/av-knapp, Trehövdad fläktdesign, Japanese SP-Cap, Intel Xe2 HPG Architecture, Intel Xe Matrix eXtensions (XMX), ARGB Lighting, Super Alloy Power-teknik, ARGB stifthuvud, Nanovärmepasta, 160 Intel XMX-motorer, 56,5 g koppar-PCB, DrMOS, Ultrafit-värmerör, Matt svart PCB, Luftavböjande fläns, 2,6-facks kylfläkt, 0dB Technology, Striped Ring Fan, Polychrome SYNC
Videominne
Minnehastighet 19 Gbps
Teknik GDDR6 SDRAM
Bussbredd 192-bit
Installerad storlek 12 GB
Systemkrav
Erforderligt nätaggregat 650 W
Extra krav 2 x 8 stifts PCI Express-strömkontakt
Diverse
Färgkategori Vit
Standarder som följs Ultra High Bit Rate 13.5 (UHBR13.5), Ultra High Bit Rate 10 (UHBR10), DisplayPort 2.1
Mått och vikt
Djup 29.8 cm
Bredd 5.1 cm
Höjd 13.1 cm
Vikt 959 g
Gränssnittsdetaljer
Gränssnittsdetaljer HDMI, 3 x DisplayPort

ASRock Intel Arc B580 Steel Legend OC

Grafikkort, PCI Express 4.0, 12GB GDDR6
