Sapphire PULSE AMD Radeon RX 7700 XT - Grafikkort - KomplettFöretag.se
Artikelnummer: 1252756 / Tillverkarens artikelnummer: 11335-04-20G

More pictures from Sapphire PULSE AMD Radeon RX 7700 XT

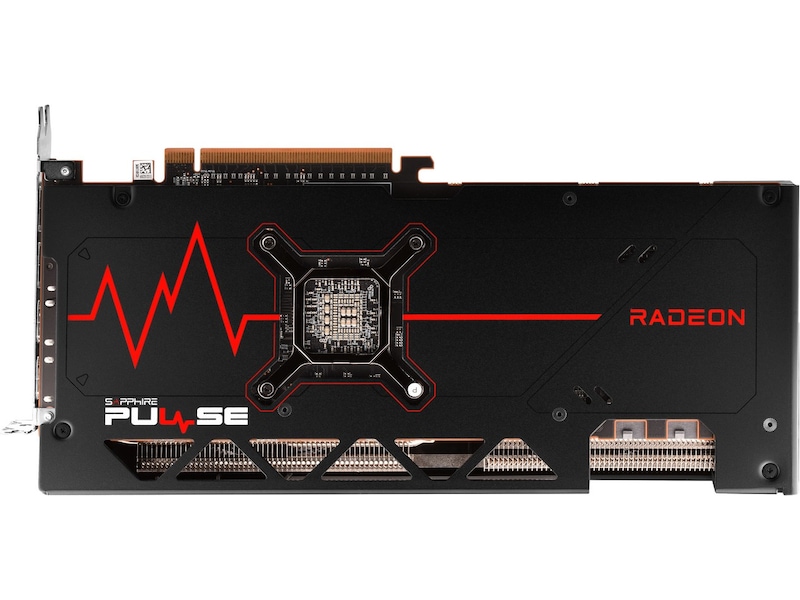

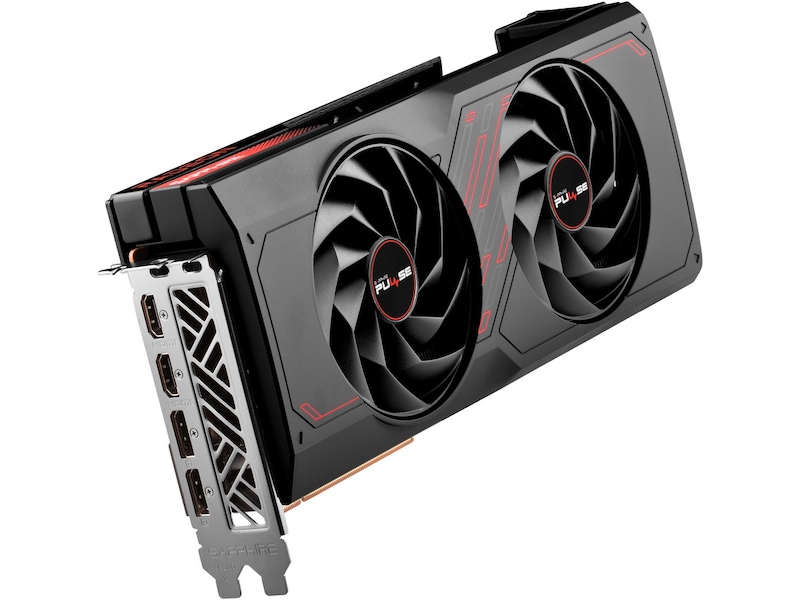

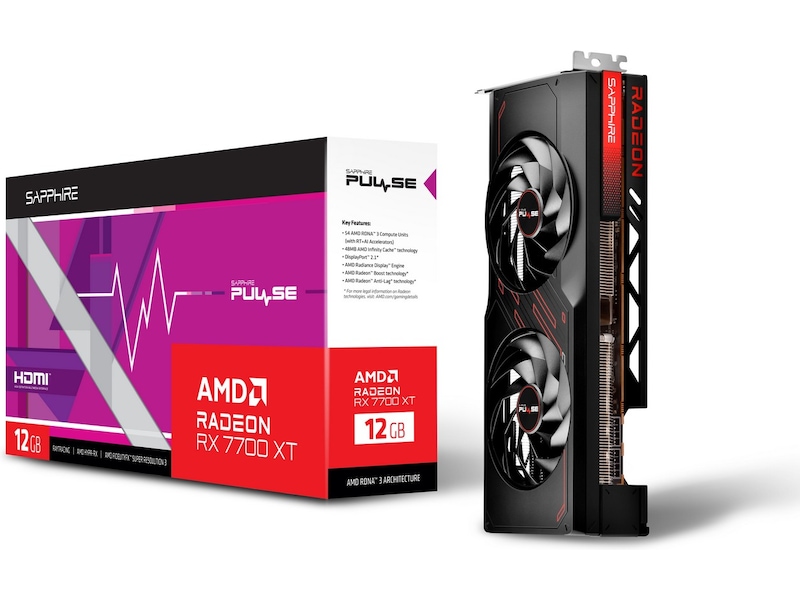

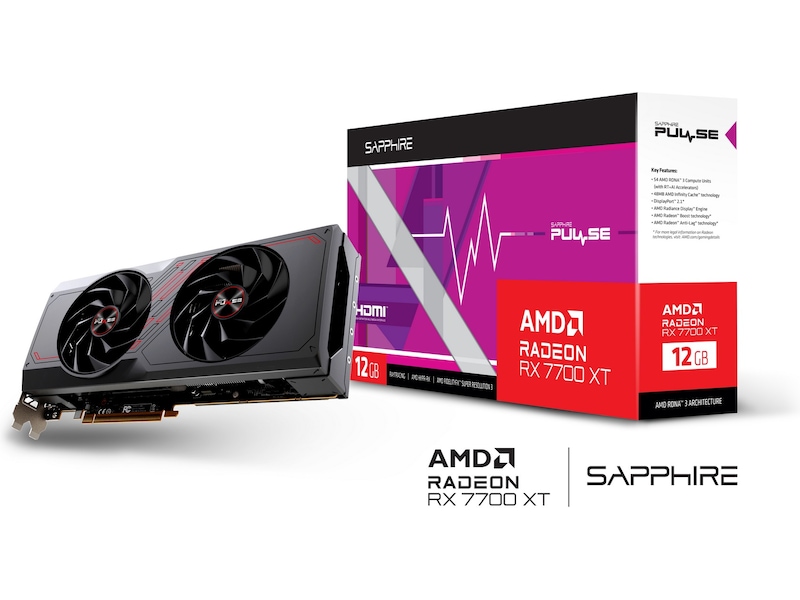

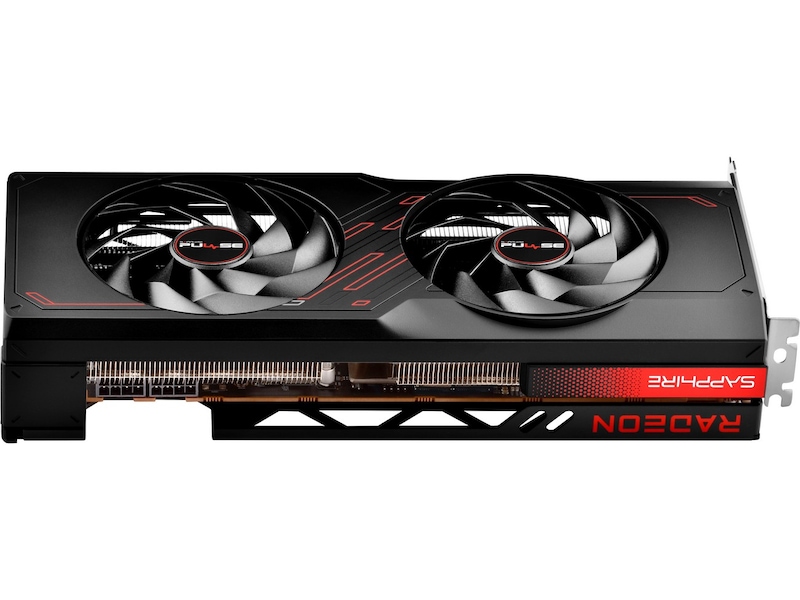

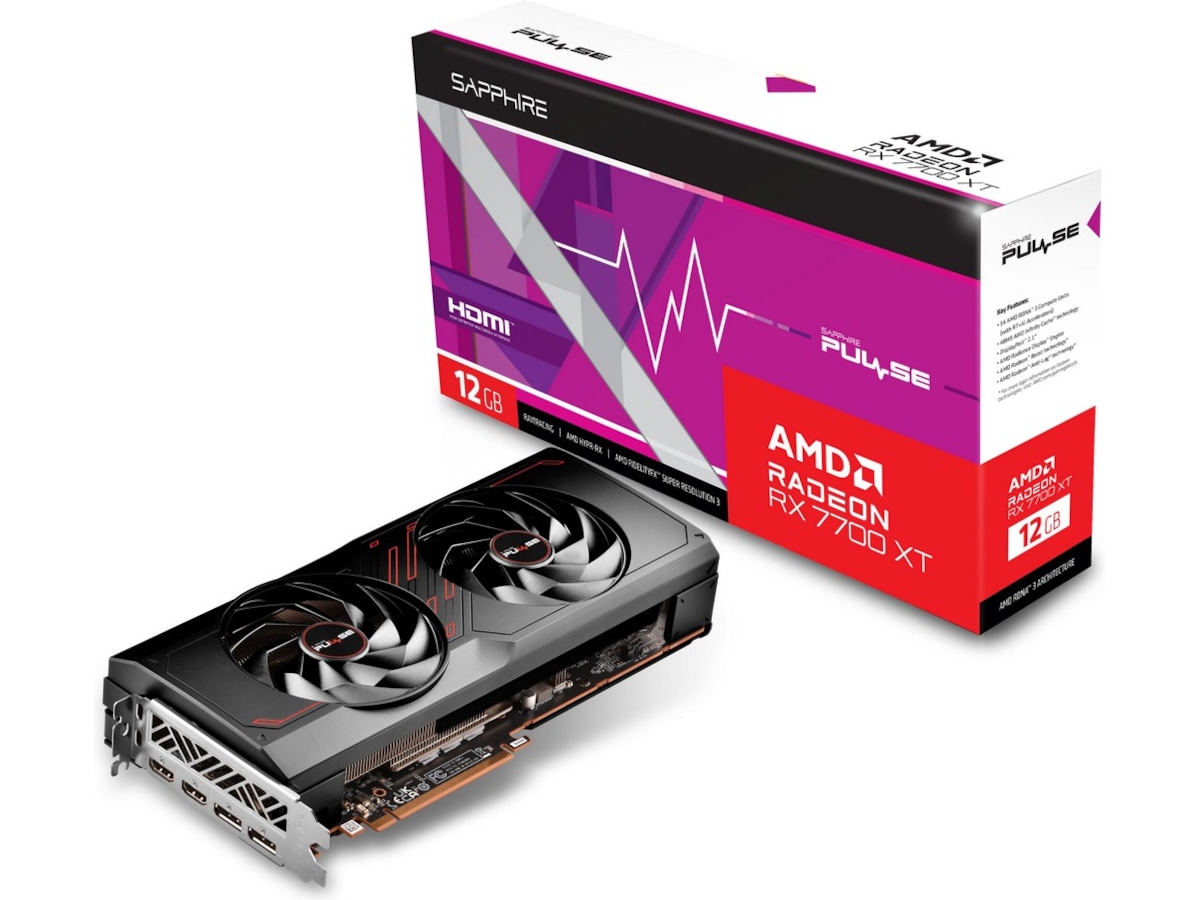

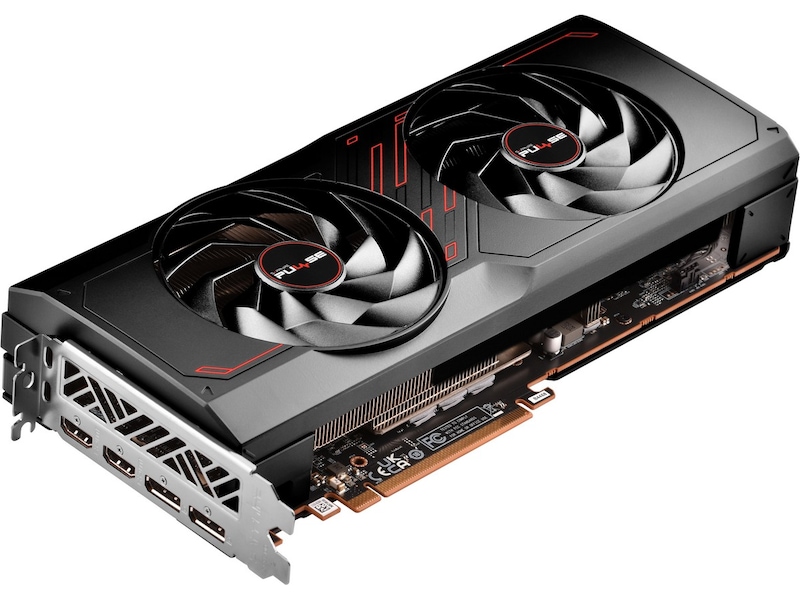

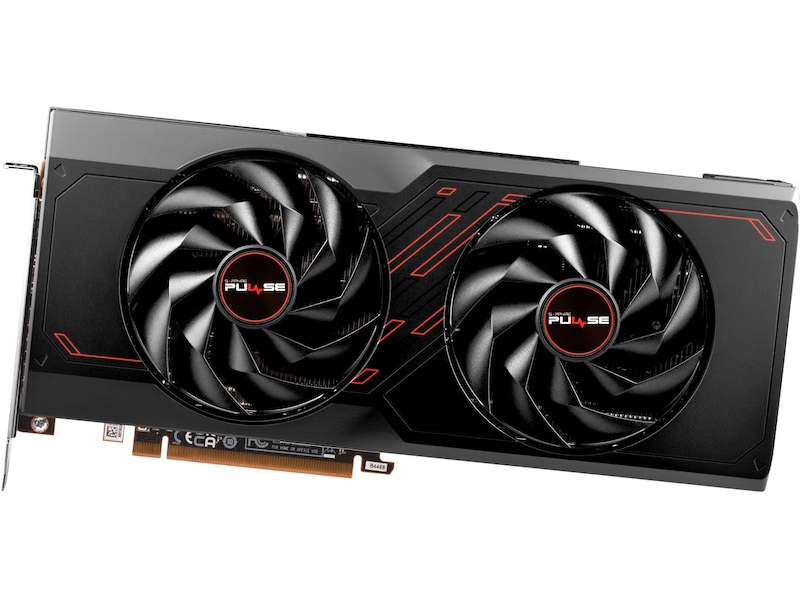

Sapphire PULSE AMD Radeon RX 7700 XT

Grafikkort, PCI-Express 4.0, 12GB GDDR6

3 832:- Exkl. moms
Ord. pris 4 319:-
Erbjudandet gäller från 06/03 t.o.m. 31/03, eller så långt lagret räcker.
Trygghetsavtal från 18:-/mån
100+ stk. i lager. (1-3 dagar leveranstid)

Sapphire PULSE AMD Radeon RX 7700 / 7800 Series

Digital Power Design

SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7700 Series are designed with digital power which provides accurate power control and excellent power efficiency

Ultra High Performance Conductive Polymer Aluminum Capacitor

The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 14-phase power possible on the RX 7700 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.

High TG Copper PCB

The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Angular Velocity Fan Blade

The Angular Velocity Fan Blade  provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.

Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

Allmänt
Produktlinje Sapphire Pulse Radeon
Modell RX 7700 XT
Producentens garanti (månader) 36
EAN 4895106294288
Videoutgång
Snabb klockhastighet 2544 MHz
Maximalt antal skärmar 4
Typ av gränssnitt PCI Express 4.0 x16
Typ Grafikkort
Antal strömprocessorer 3456
Processteknik 5 nm
Grafikprocessortillverkare AMD
Grafikprocessor AMD Radeon RX 7700 XT
Maximal extern upplösning 7680 x 4320
Videosignal som stöds DisplayPort, HDMI
Egenskaper för videoadapter Kompositvärmerör, AMD Infinity Cache, AMD Privacy View, Dual Fan Design, Säkringsskydd, FreeSync Technology, Premium Digital Power Design, Intelligent Fan Control (IFC), Precision Fan Control, 54 AMD RDNA 3 beräkningsenheter, Microsoft DirectStorage, AMD FidelityFX Super Resolution 2 (FSR), TriXX Supported, RDNA 3 gamingarkitektur, Ledande kondensatorer av polymeraluminium, AMD Noise Suppression, AMD Radiance Display Engine, Fläktar med dubbla kullager, UEFI Ready, Bakre metalplåt, Sapphire Dual-X Cooling Technology, High TG Copper PCB, TriXX Boost, 2.5-slot Fan Cooler, Vinkelhastighetsfläktblad, AMD Link, AMD Smart Technologies, 48 MB cache, AMD Radeon Super Resolution (RSR)
API-stöd DirectX 12 Ultimate, Vulkan
Utgångsportar (kompaktlista) 2 x HDMI, 2 x DisplayPort
Videominne
Bussbredd 192-bit
Minnehastighet 18 Gbps
Teknik GDDR6 SDRAM
Installerad storlek 12 GB
Programvara
Typ AMD Radeon Software Adrenalin Edition
Nätdel
Energiförbrukning vid drift 230 Watt
Systemkrav
Erforderligt nätaggregat 700 W
Min RAM-storlek 8 GB
Extra krav 2 x 8 stifts PCI Express-strömkontakt
Operativsystem erfordras Windows 11, Windows 10 (64-bit), Linux
Diverse
Standarder som följs DisplayPort 2.1
Färgkategori Svart, Röd
Mått och vikt
Höjd 12.875 cm
Djup 28 cm
Bredd 5.257 cm
Gränssnittsdetaljer
Gränssnittsdetaljer 2 x HDMI, 2 x DisplayPort
