Artikelnummer: 1200327 / Tillverkarens artikelnummer: PRO Z690-A DDR4

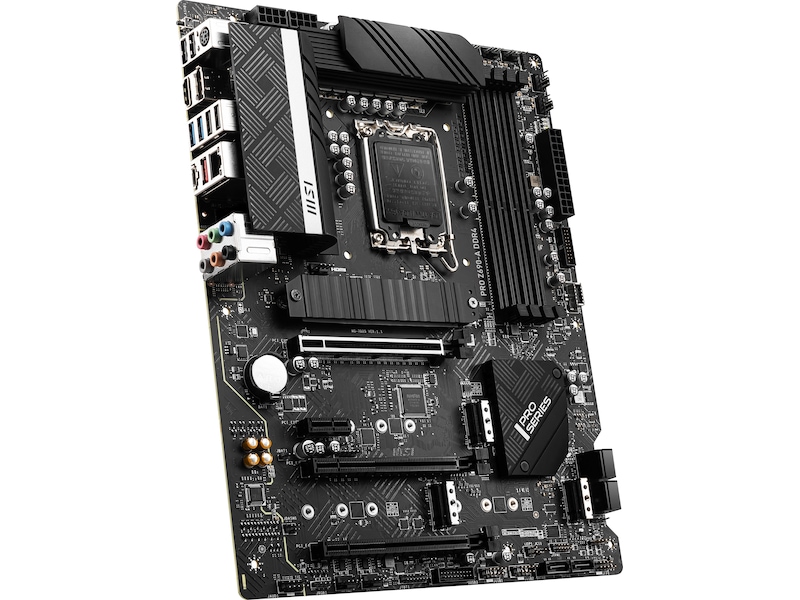

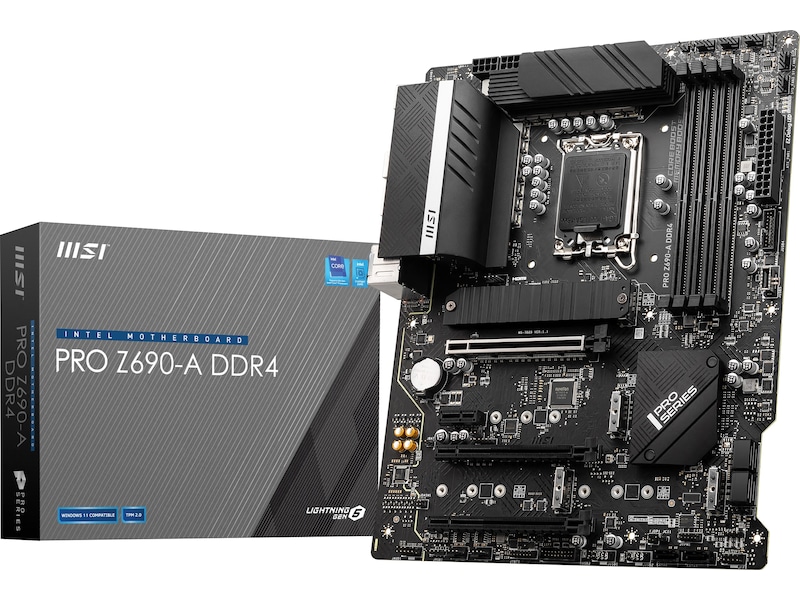

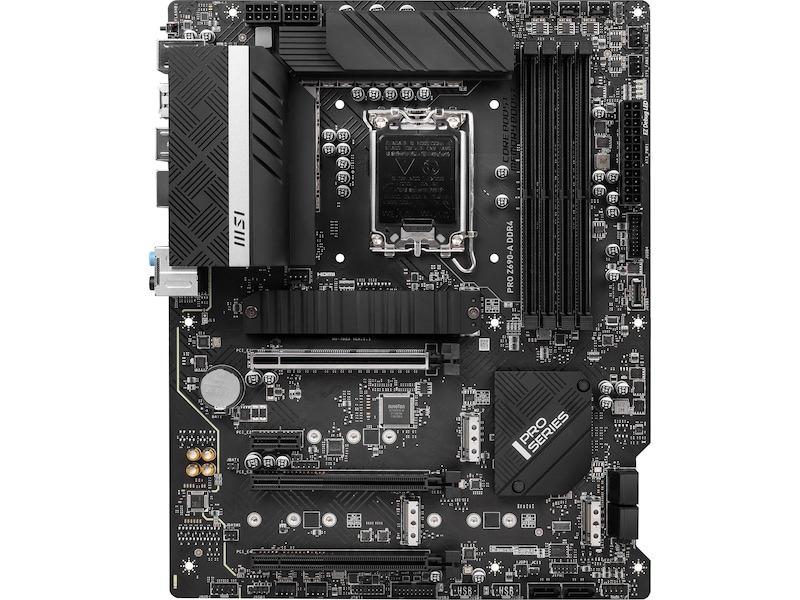

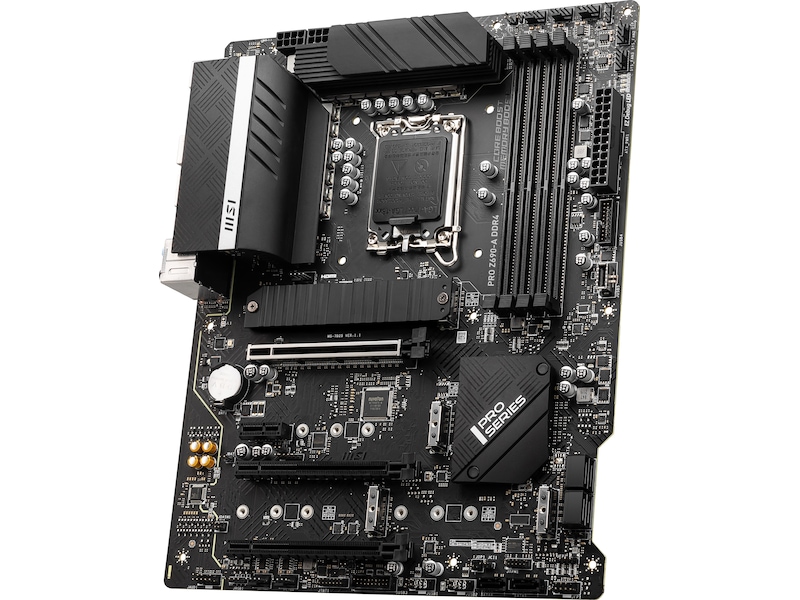

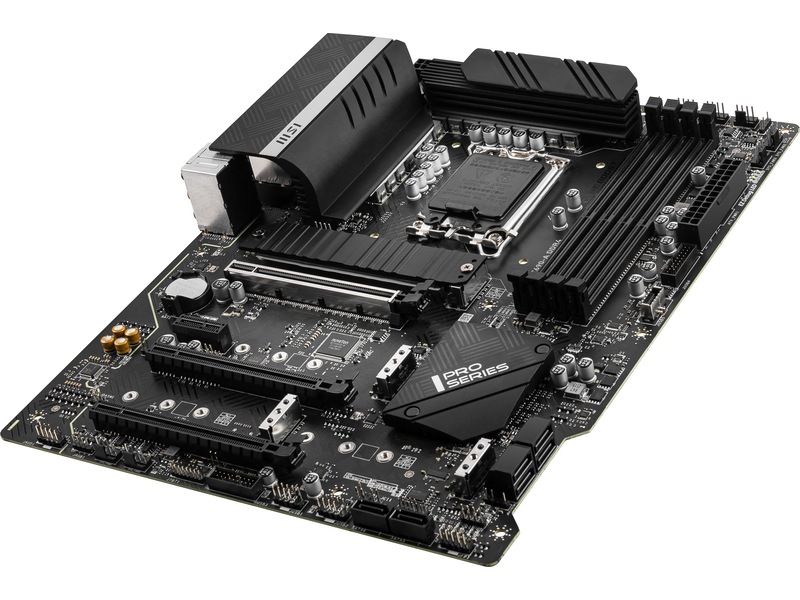

MSI PRO Z690-A DDR4 Moderkort

Name: MSI PRO Z690-A DDR4 Moderkort
Brand: MSI
SKU: 1200327
Availability: Discontinued

Of MSI

1 / 8

Produktinfo

MSI PRO Z690 Reseller page -A DDR4

PRO Z690-A DDR4

Exclusive features

Core Boost Technology

Combining 2x 8 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Digital PWM

Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

PCIe Steel Armor

Protecting VGA cards against bending and EMI for better performance, stability and strength.

PRO Z690-A DDR4

premium thermal solutions

Extended Heatsink

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

PRO Z690-A DDR4

HIGH-SPEED TRANSMISSION

2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager delivers better network experience.

Lightning USB 20G

Built-in USB 3.2 Gen 2x2 port, offers the 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

Memory Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Lightning Gen 5 Solution

The latest Gen 5 PCI-E solution with up to 128GB/s bandwidth for maximum transfer speed.

MSI PRO Z690-A DDR4 & MAG VAMPIRIC 300R & MAG CORELIQUID 240R & MPG A750GF

LIGHTNING GEN 5 PCI-E

MSI Lightning Gen 5 PCI-E represents the bandwidth of a x16 interface to 128GB/s, which is double of the speed of the previous generation. The advanced SMT(Surface Mount Technology) PCI-E slot diminishes the interference and electrical noise, fully supporting higher bandwidth and faster transfer speeds of PCI-E 5.0 signal.

CORE BOOST

Core Boost technology combines MSIâ€™s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

6-LAYER SERVER GRADE PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper and multilayer server grade solution increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

EXTENDED HEATSINK

Metal extended heatsink enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.

USB Type-C ready in both Front case panel & Rear IO

Get all the performance benefits from the USB Type-C connector. This reversible USB connector allows for effortless connecting of USB devices.

LIGHTNING GEN 4 M.2 WITH M.2 SHIELD FROZR

Cooling your NVMe SSD delays throttling which results in higher overall performance. Part of the motherboards heatsink design which helps avoid SSD throttling by offering the best thermal protection.

FASTER LIGHTNING USB 20G

The transmission speed of the latest USB 3.2 Gen 2x2 reaches up to 20Gbps, which is four times faster than USB 3.2 Gen 1 solution. PRO Z690-A DDR4 offers stable high speed transmission by reversible Type-C as well as read and write your files over USB faster than ever.

14 + 1 + 1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design with concurrent stable power delivery. Combining 2x 8 pin power connectors and exclusive Core Boost technology, PRO Z690-A DDR4 motherboard is ready to sustain heavy daily work.

2x 8 Pin CPU Power connectors
14 Duet Rail CPU PowerSystem
1 phase GT Power
1 phase AUX Power
Digital PWM IC

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your systemâ€™s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

MAXIMIUM DATA TRANSFER WITH 2.5G LAN

PRO Z690-A DDR4 features high-bandwidth and low-latency dual Ethernet networks for demanding creators and power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

EASY TO ARRANGE YOUR CABLES

Not clever at cable arrangement? MSI Atypical PCB design not only the identity of stylish but also makes SATA and USB cable routing easier. Arranges cable neatly even you are not familiar with system build.

MULTIPLE GPU SUPPORTS AND STEEL ARMOR

PRO Z690-A DDR4 supports multiple GPU solution. Optimal PCI-Express slot placement allows for better fitting and airflow. That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an AMD CrossFireâ„¢ setup. Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free user experience.

Tekniska specifikationer

Allmänt
Produktlinje	MSI
Modell	PRO Z690-A DDR4
Producentens garanti (månader)	36
EAN	4719072886622

Moderkort
RAM som stöds (registrerad eller buffrad)	Ej buffrad
Formfaktor	ATX
Stöder Ram Integrity Check	Icke ECC
RAM-kortplatser	4 DIMM-kortplatser
RAM-teknik som stöds	DDR4 SDRAM
Processor-socket	LGA1700-uttag
Kretstyp	Intel Z690
Kompatibla processorkommentarer	Stöder 12:e generationens Intel Core/Pentium Gold/Celeron
RAM-hastighet som stöds	4800 MHz (O.C.), 5200 MHz (O.C.), 2933 MHz, 2133 MHz, 2666 MHz, 4400 MHz (O.C.), 4000 MHz (O.C.), 3200 MHz
Strömkontakter	2 x 8-stifts ATX12V-kontakter, 24-pin kontakt för huvudström

Gränssnitt
USB/FireWire-portkonfiguration (aktiv)	1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB/FireWire-portkonfiguration (sidhuvud)	1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
RAID-egenskaper	Intel Smart Response Technology
Lagringsportar	6 x SATA-600 (RAID), 4 x M.2
USB/FireWire	USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2
Lagring	Serial ATA-600 (RAID), M.2-uttag

Videoutgång
Typ	Grafikadapter (CPU krävs)

Ljudutgång
Audio Codec	Realtek ALC897
Typ	Ljudkort
Standarder som följs	HD-ljud
Ljud	High Definition Audio (8-kanalig)

Nätverk
Nätverk	2.5 Gigabit Ethernet
Datalänkprotokoll	2.5 Gigabit Ethernet
Nätverksstyrenhet	Intel I225-V

Kabeldetaljer
Medföljande kablar	2 x Seriell ATA-kabel

Programvara
Programvara inkluderad	Drivrutiner och hjälpprogram

Diverse
Produkttyp	Moderkort

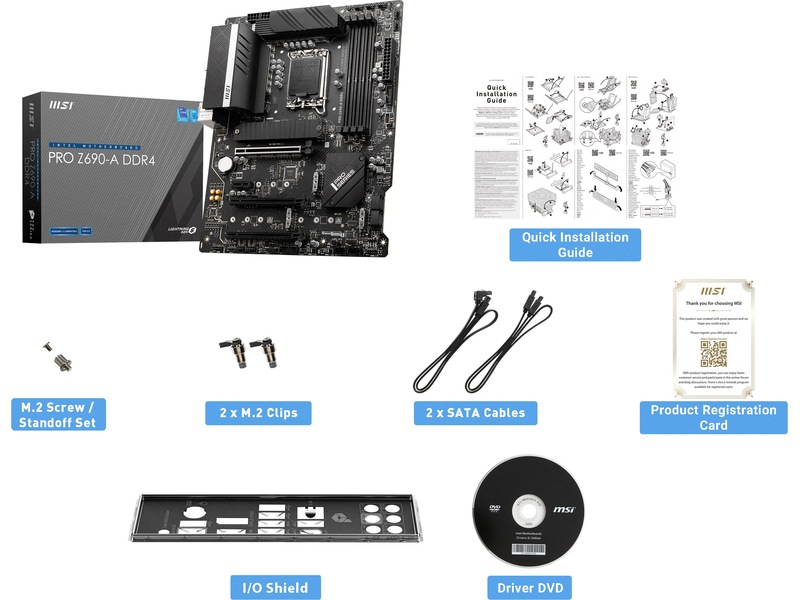

Inkluderade tillbehör	2 x M.2-klämmor, Wi-Fi-antenn, M.2-skruv/distansuppsättningar, I/O-bakpanel

Moderkortegenskaper
Hårdvaruegenskaper	Windows 11-kompatibel, 6 Layer PCB, AMD CrossFireX-tekniksupport, MSI Core Boost, Intel Optane Memory Ready, Debug LED, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, 14+1+1 Phase Power Design, Dubbelt ESD-skydd

RAM
Egenskaper	Intel Extreme Memory Profiles (XMP), Minnesarkitektur med dubbel kanal

Expansionsuttag
Expansionskortplatser	1 x PCIe 3.0 x1, 4 x DIMM 288-stift, 1 x PCIe 3.0 x16 (x4-läge), 1 x CPU, 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x1-läge)

Lagringsgränssnitt
Lagringsgränssnitt	SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 / PCIe 3.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -kontakter: 6 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5

Tillhandahållet gränssnitt

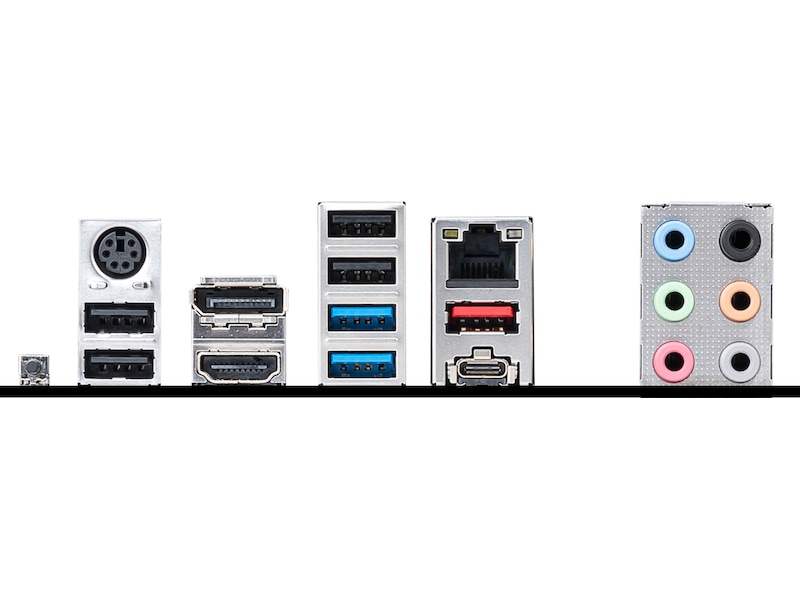

Gränssnitt	1 x mikrofon - mini-jack, 1 x ljudutgång - mini-jack, 4 x USB 2.0, 1 x ljudingång (sidosurround) - mini-jack, 1 x USB-C Gen2x2, 1 x DisplayPort, 1 x PS/2-tangentbord/mus, 2 x USB 3.2 Gen 1, 1 x ljudutgång (bakre) - mini-jack, 1 x ljudutgång (center/subwoofer) - mini-jack, 1 x USB 3.2 Gen 2, 1 x HDMI, 1 x ljudingång - mini-jack, 1 x LAN (2.5Gigabit Ethernet)

Interna gränssnitt
Interna gränssnitt	1 x USB-C Gen2 - header, 4 x USB 2.0 - header, 1 x ljud - header, 4 x USB 3.2 Gen 1 - header
