Artikelnummer: 1198161 / Tillverkarens artikelnummer: 90MB18M0-M0EAY0

ASUS ROG STRIX Z690-F GAMING WIFI Moderkort

Of ASUS

More pictures from

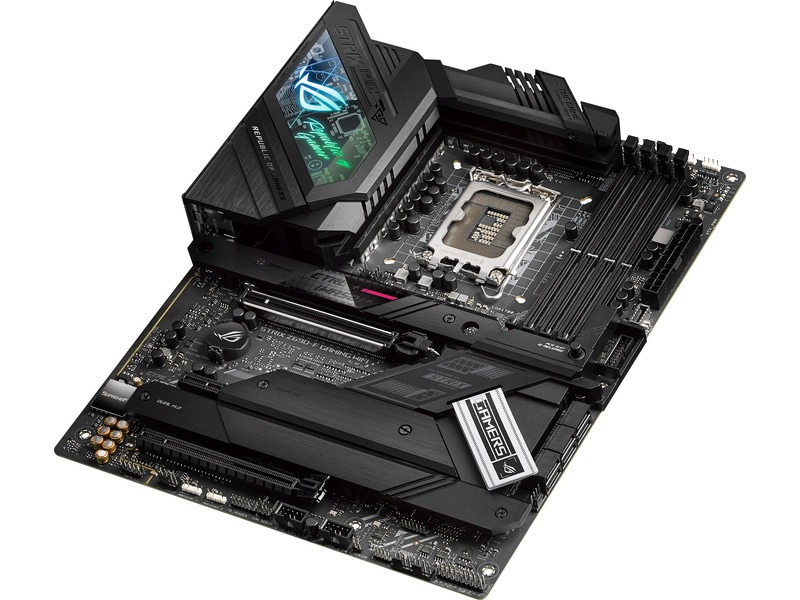

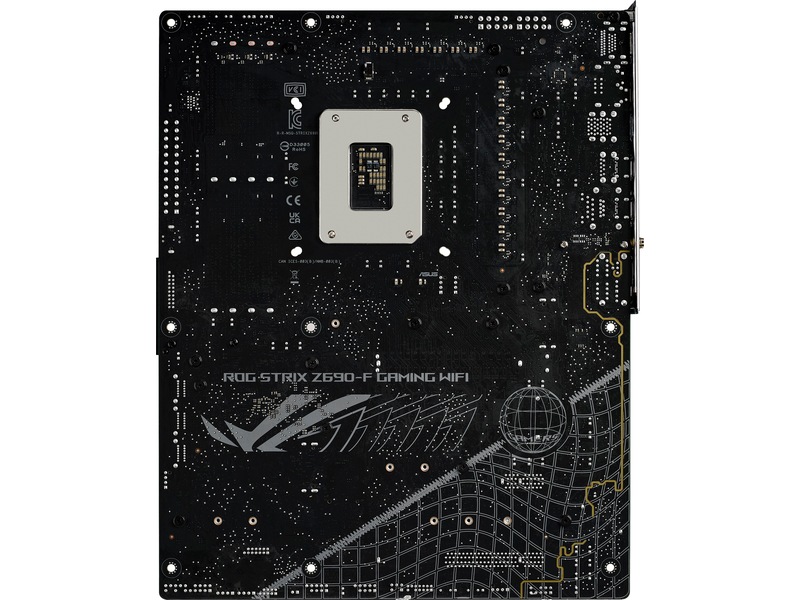

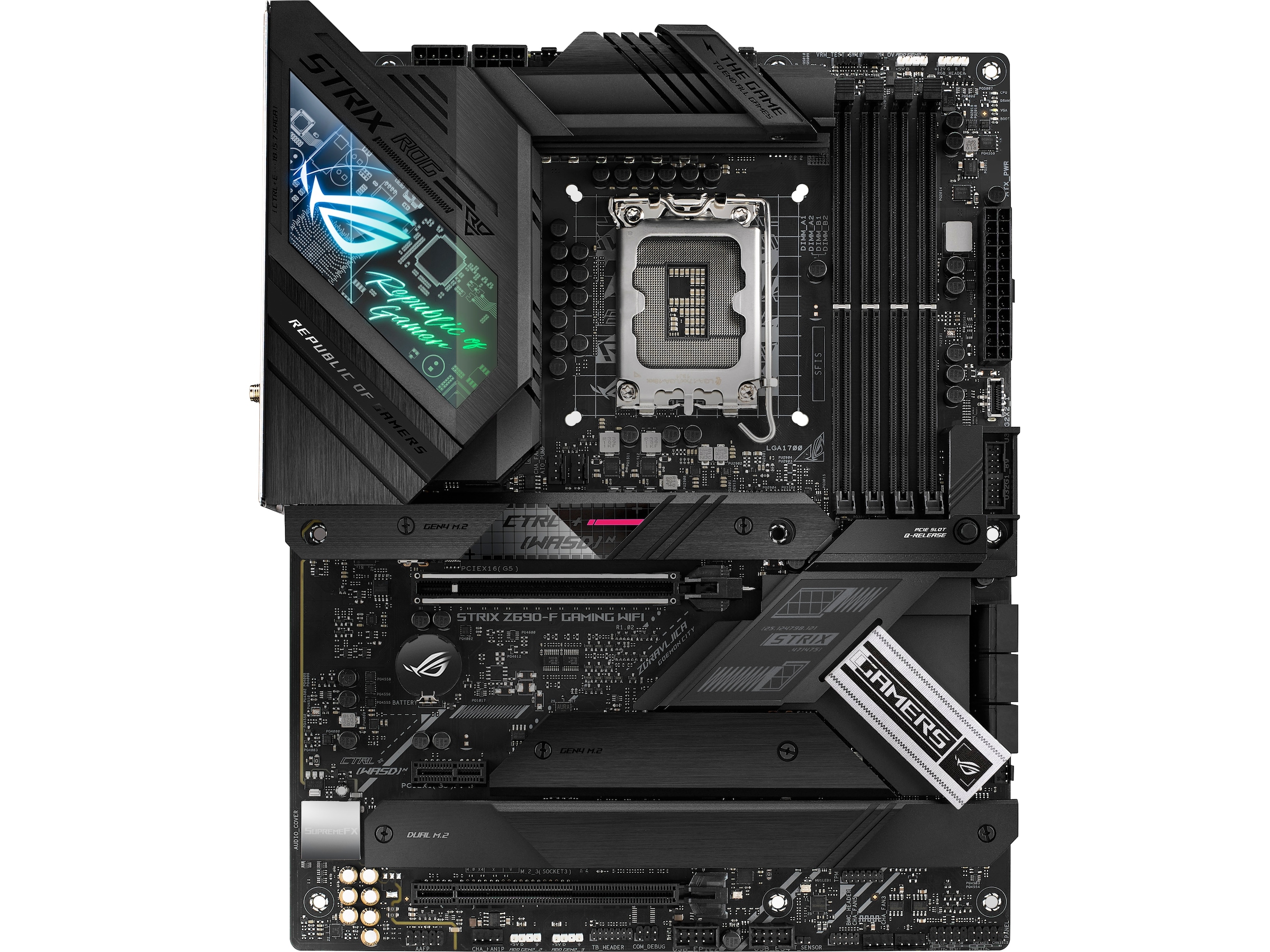

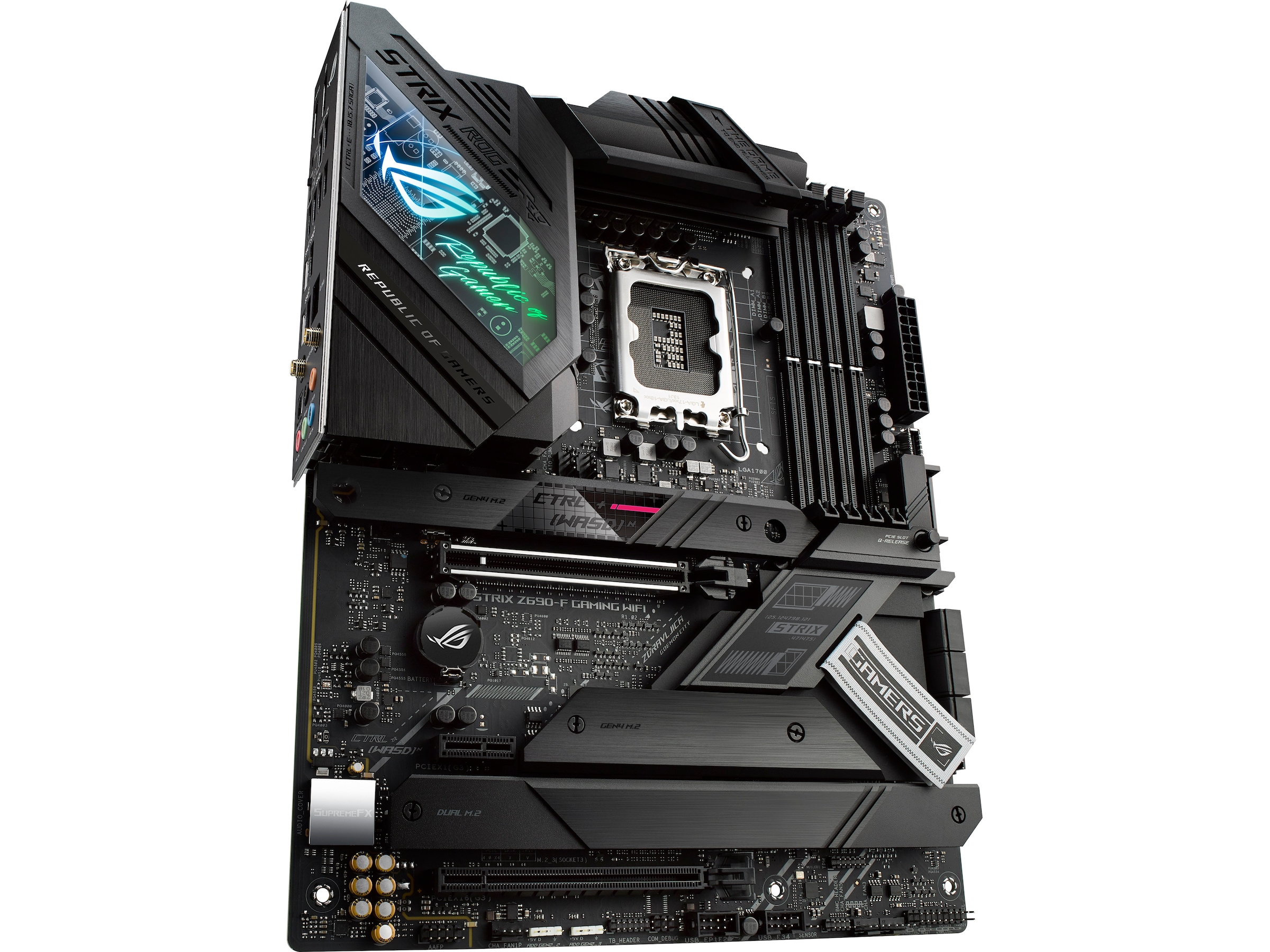

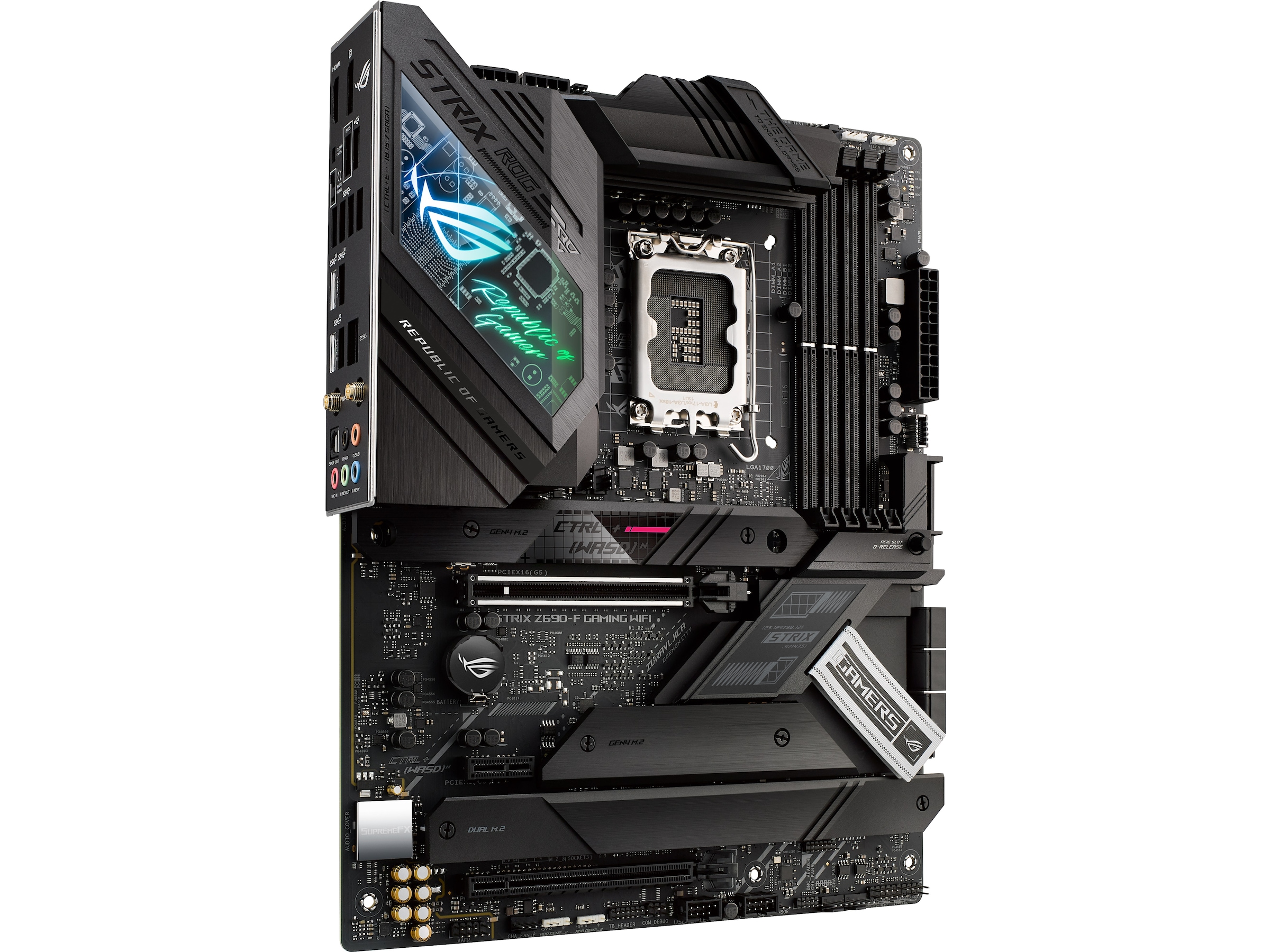

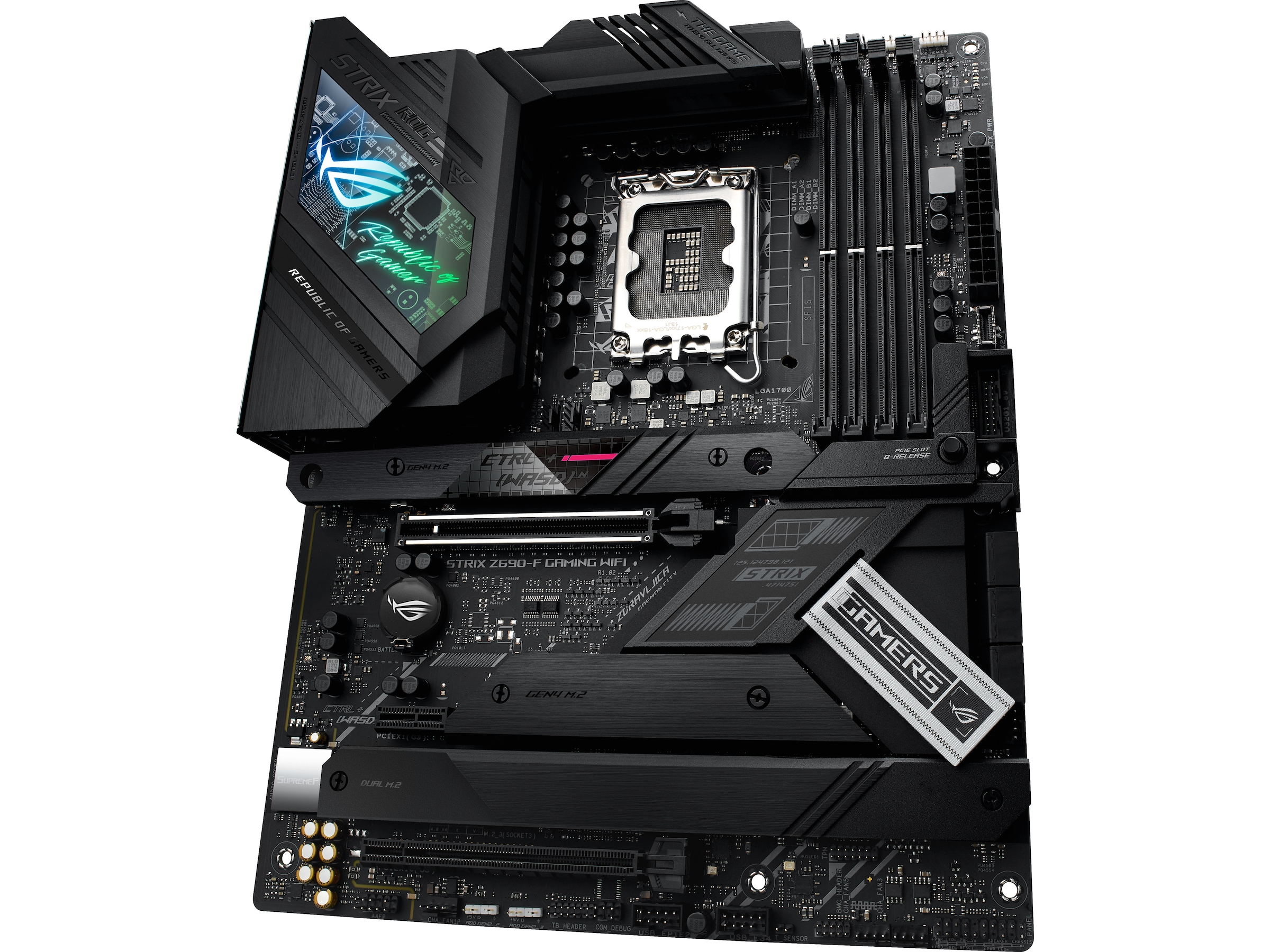

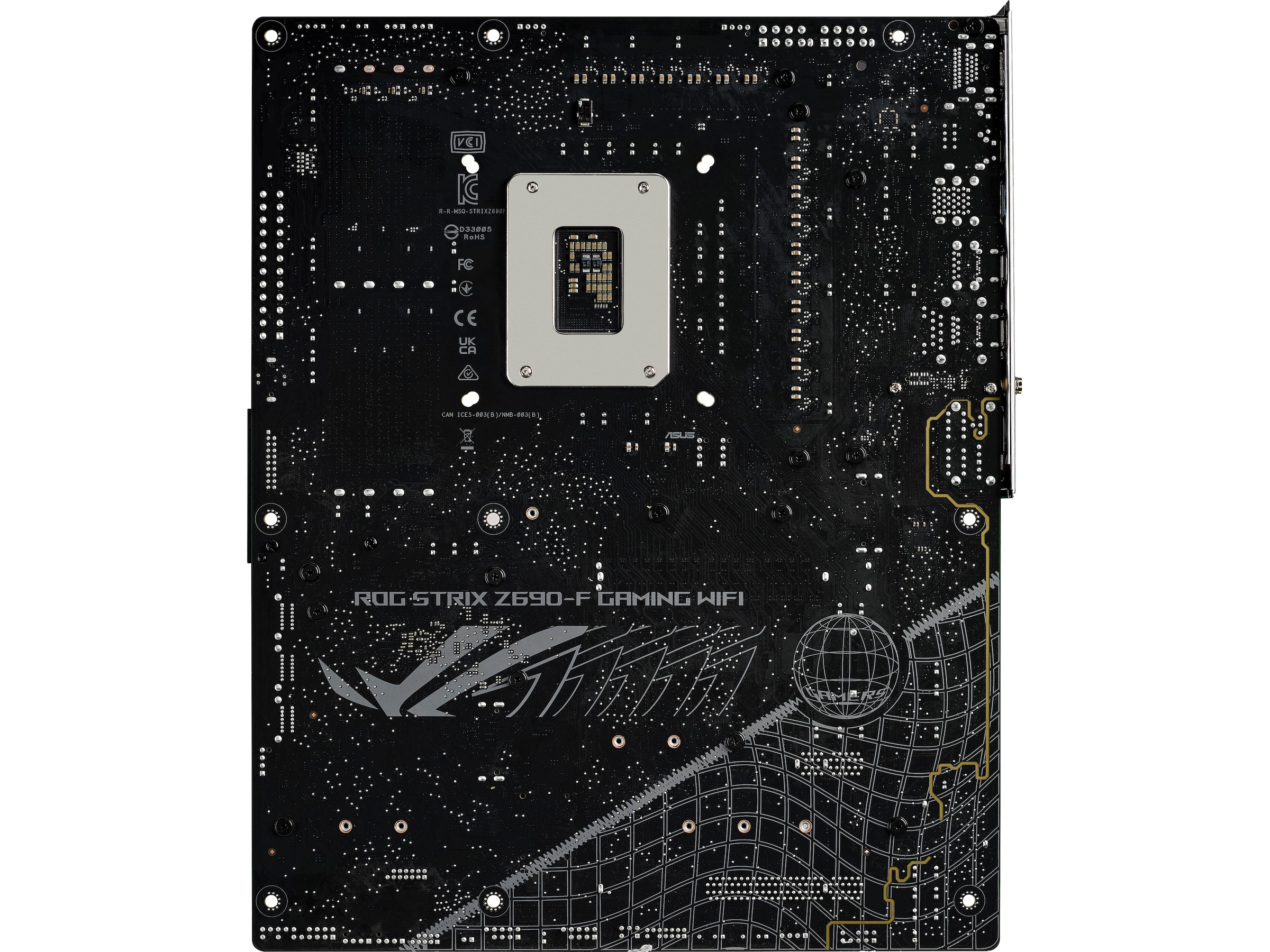

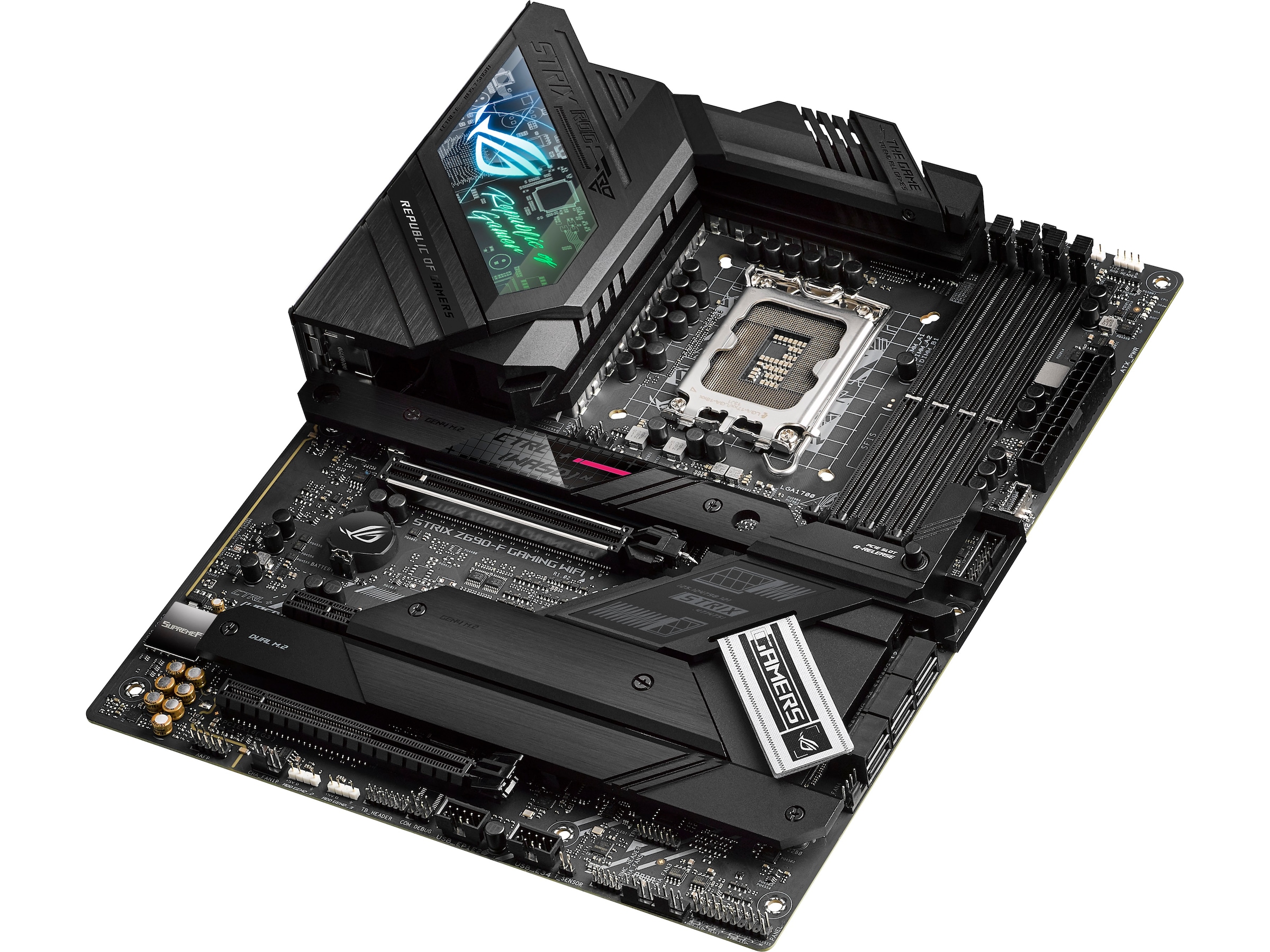

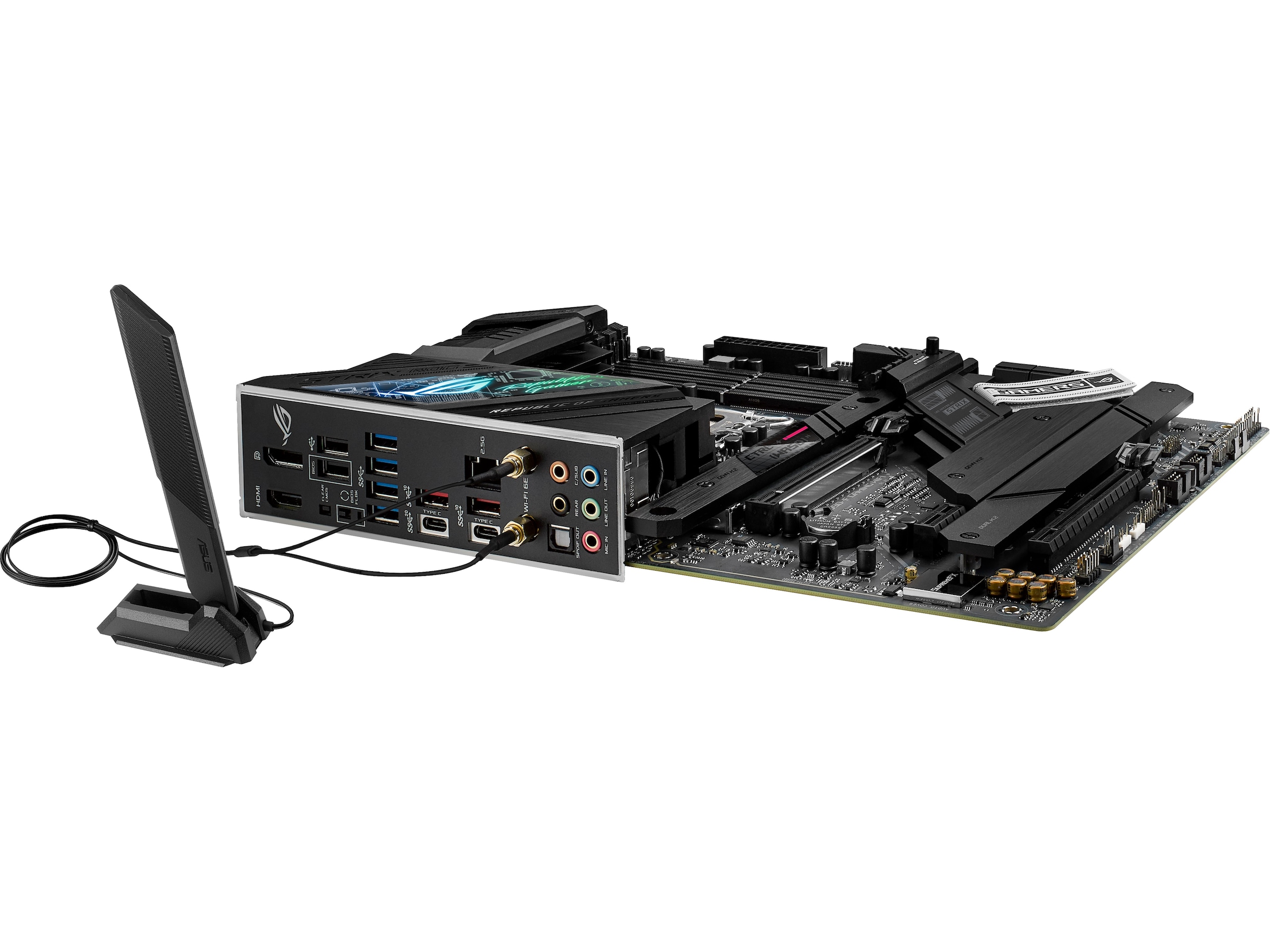

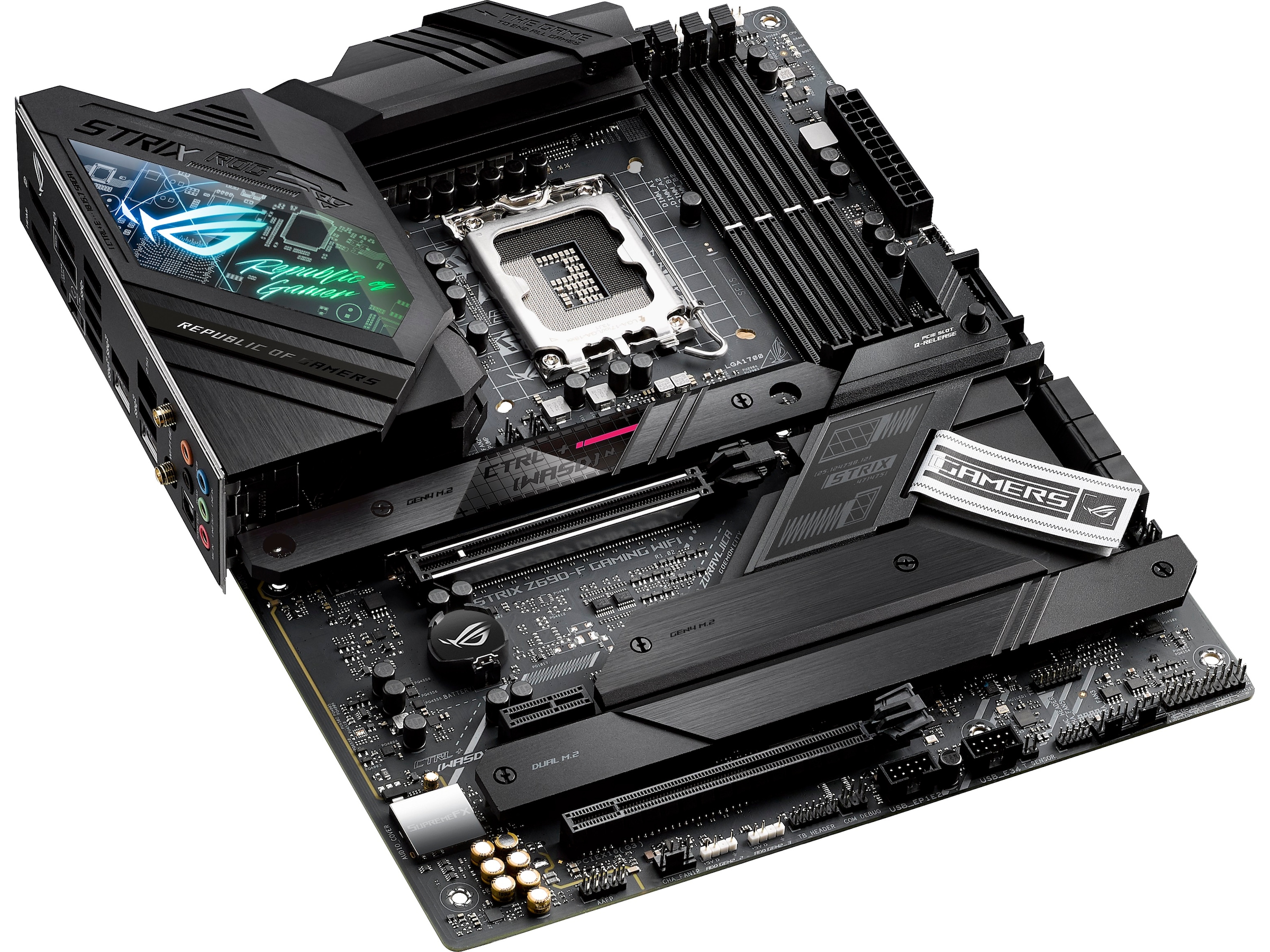

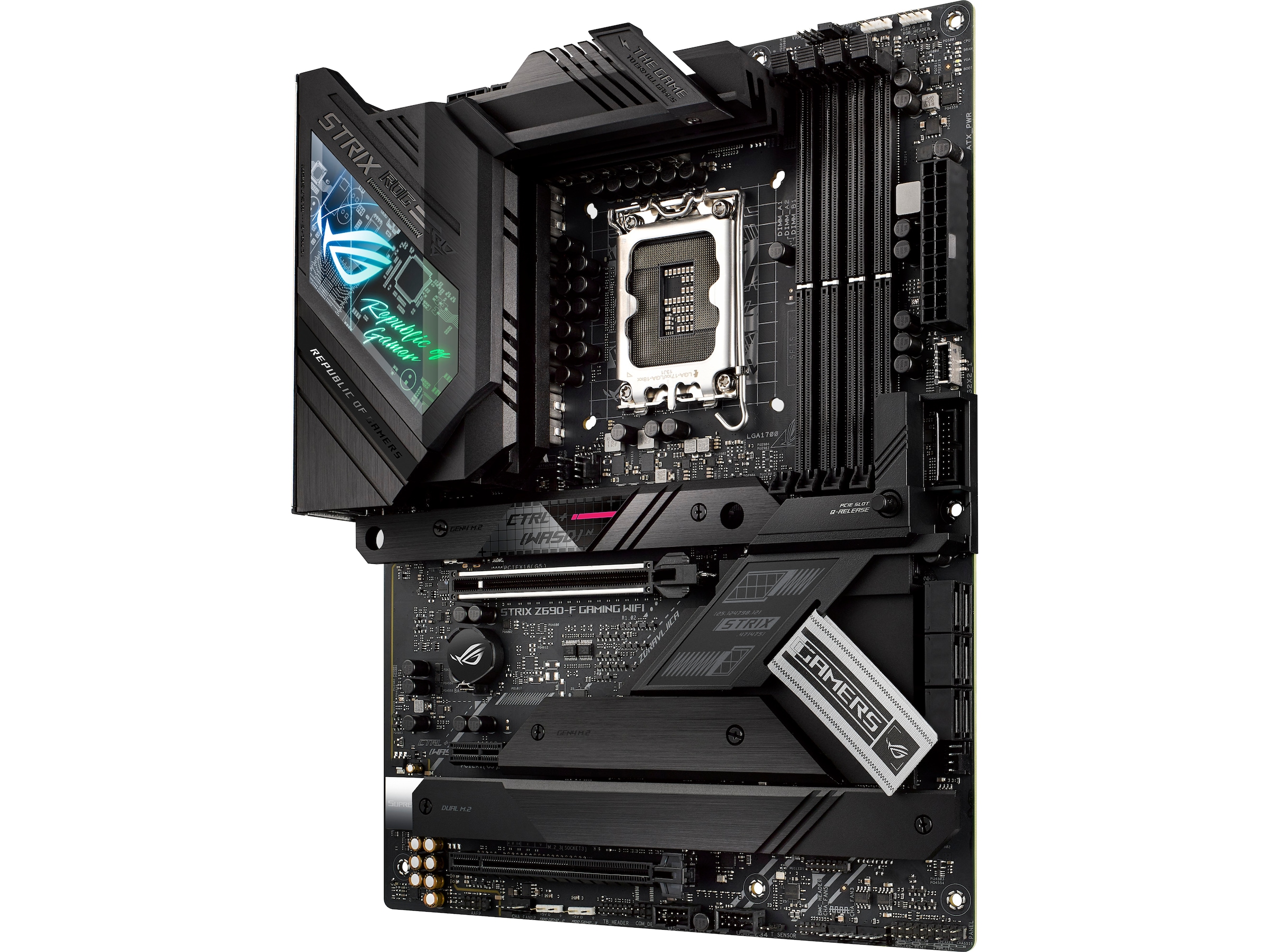

ASUS ROG STRIX Z690-F GAMING WIFI, LGA1700 Motherboard

ROG STRIX Z690-F GAMING WIFI
ROG Strix Z690-F Gaming WiFi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard WiFi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.

ALL-AROUND PERFORMANCE - ROG Strix Z690-F Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

• Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Optimal Power Solution: 16+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
• High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Allmänt
Modell ROG STRIX Z690-F GAMING WIFI
Produktlinje ASUS
Producentens garanti (månader) 36
EAN 4711081441762
Moderkort
Processor-socket LGA1700-uttag
RAM-teknik som stöds DDR5 SDRAM
Kretstyp Intel Z690
RAM som stöds (registrerad eller buffrad) Ej buffrad
RAM-kortplatser 4 DIMM-kortplatser
Formfaktor ATX
Stöder Ram Integrity Check Icke ECC
Strömkontakter 24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter
RAM-hastighet som stöds 6000 MHz (O.C.), 5800 MHz (O.C.), 5200 MHz (O.C.), 6200 MHz (O.C.), 5600 MHz (O.C.), 4800 MHz, 5000 MHz (O.C.), 6400 MHz (O.C.), 5400 MHz (O.C.)
Moderkortegenskaper
BIOS-typ AMI
BIOS-egenskaper UEFI BIOS, ASUS EZ Flash 3, BIOS FlashBack
Hårdvaruegenskaper SupremeFX Shielding-teknik, ASUS Aura Sync, CrashFree BIOS 3, Clear CMOS-knapp, Preboot eXecution Environment (PXE), ASUS ProCool II, ASUS Q-Design, Intel Turbo Boost Max Technology 3.0, Armoury Crate, ASUS EZ DIY, Sonic Radar III, Q-Slot, SafeDIMM, Sonic Studio III, Q-LED, FlexKey-knapp, Q-DIMM, ASUS TPU (TurboV Processing Unit), Intel Turbo Boost-teknologi 2.0, Förmonterat I/O-skydd, Gold Plated Audio Hardware, ASUS SafeSlot, GameFirst VI, Automatisk enhets-igenkänning, ASUS DIGI+ VRM, ASUS Fan Xpert 4, ASUS HYDRANODE, ASUS EPU (Energy Processing Unit), ASUS OptiMem II, Savitech SV3H712-förstärkare, ASUS Extreme Engine Digi+, M.2 Q-Latch, Detekteringsteknik för ljudjack
Viloläge/väckning Wake on LAN (WOL), Wake on PME
Gränssnitt
RAID-egenskaper Intel Rapid Storage Technology
Lagringsportar 6 x SATA-600 (RAID), 4 x M.2
USB/FireWire-portkonfiguration (sidhuvud) 1 x USB-C Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB/FireWire-portkonfiguration (aktiv) 1 x USB-C Gen 2x2 + 1 x USB-C Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0
Lagring M.2-uttag, Serial ATA-600 (RAID)
USB/FireWire USB-C Gen2, USB 3.2 Gen 1, USB-C Gen 2x2, USB 3.2 Gen 2
RAM
Egenskaper Minnesarkitektur med dubbel kanal
Videoutgång
Typ Grafikadapter (CPU krävs)
Ljudutgång
Typ Ljudkort
Ljud High Definition Audio (8-kanalig)
Audio Codec SupremeFX (ALC4080)
Standarder som följs DTS Sound Unbound, HD-ljud
Kabeldetaljer
Medföljande kablar 4 x Seriell ATA-kabel
Diverse
Produkttyp Moderkort
Inkluderade tillbehör ASUS Wi-Fi rörlig antenn, 2 st. M.2-gummipaket, STRIX-märken, ROG-nyckelring, M.2 Q-Latch, ROG tackkort
Nätverk
Datalänkprotokoll 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11g, IEEE 802.11b, IEEE 802.11az (Wi-Fi 6E), IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E)
Nätverk 802.11a/b/g/n/ac/ax/az, 2.5 Gigabit Ethernet, Bluetooth 5.2
Expansionsuttag
Expansionskortplatser 1 x PCIe 3.0 x1, 1 x CPU, 4 x DIMM 288-stift, 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4-läge)
Lagringsgränssnitt
Lagringsgränssnitt SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -kontakter: 6 x 7 pin seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Tillhandahållet gränssnitt

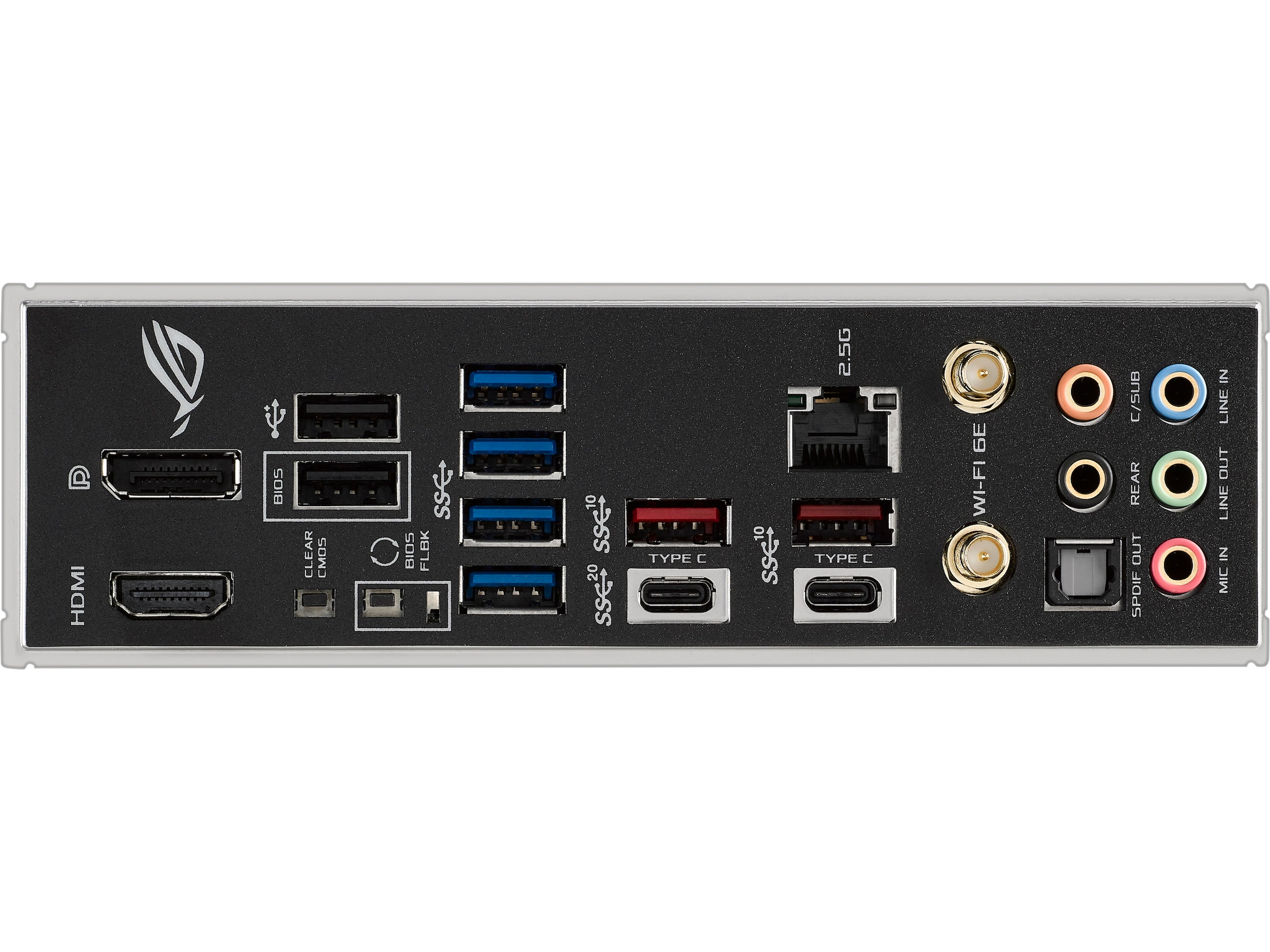

Gränssnitt 1 x ljudutgång (bakre) - mini-jack, 1 x HDMI, 4 x USB 3.2 Gen 1, 1 x ljudutgång (center/subwoofer) - mini-jack, 1 x ljudutgång - mini-jack, 1 x TOSLINK, 2 x USB 3.2 Gen 2, 1 x mikrofon - mini-jack, 1 x USB-C Gen2x2, 1 x USB-C Gen2, 1 x DisplayPort, 2 x USB 2.0, 1 x LAN (2.5Gigabit Ethernet), 1 x ljudingång - mini-jack
Interna gränssnitt
Interna gränssnitt 1 x Thunderbolt - header, 4 x USB 2.0 - header, 1 x USB-C Gen 2x2 - header, 1 x ljud - header, 2 x USB 3.2 Gen 1 - header
Programvara
Programvara inkluderad WinRAR, MemTest86, Antivirus, AIDA64 Extreme (60 dagars testperiod), ASUS Turbo App, Sonic Studio Virtual Mixer, ASUS AI Suite III, ASUS AURA Creator, Drivrutiner och hjälpprogram, ROG CPU-Z
